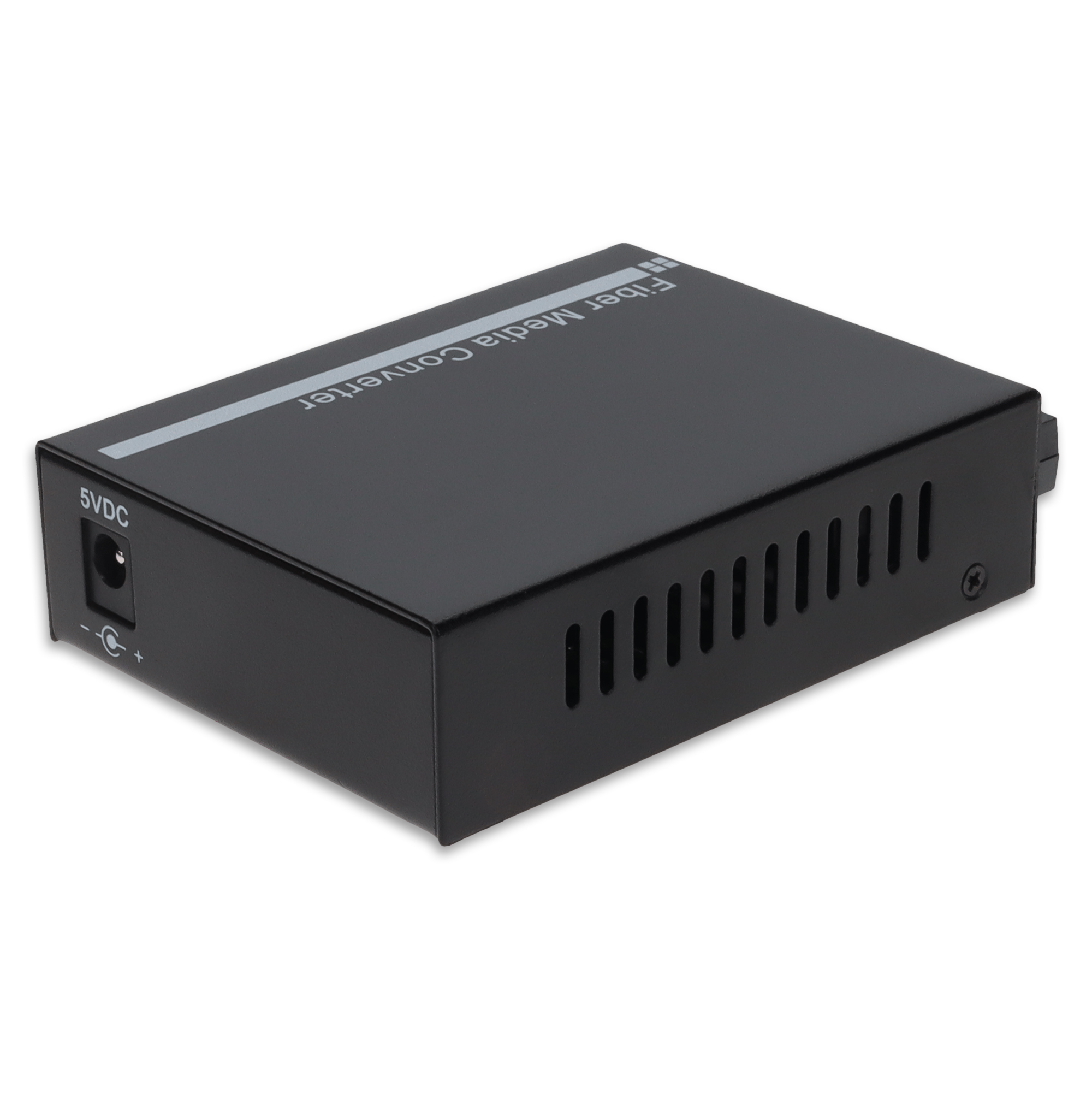

This is a media converter that converts a 10/100Base-TX(RJ-45) to 100Base-BXU(SC) via a 1310nmTX/1550nmRX bi-directional (BiDi) single-mode fiber (SMF) SC connector, which allows distance reach up to 20km. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-BXU fiber, while extending the network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Technical Specification
Compatible OEM | Industry Standard |
Media Type | SMF |
Data Rate | 100Mbs |
Power Supply | AC/DC Power Adapter - 5V DC Input |
Media Conversion Type | Copper to SMF |
Reach | 20km |
Wavelength | 1310nmTx/1550nmRx |
Type | Media Converter |
POE | No |
Managed | Unmanaged |
Connector1 Number of Ports | 1 |
Connector2 Number of Ports | 1 |
Connector Types | RJ-45 & SC |
Physical Specification
Product Shipping Dimension(HxWxD) | 4.0 in. x 3.0 in. x 1.0 in. |
Product Shipping Weight(LB) | 1 |
Miscellaneous
Country Of Origin | Varies |
ECCN | EAR99 |
HTS-Harmonized Code (US) | 8517.62.0090 |
TAA Compliant | No |
UNSPSC Code | 43201553 |
UPC Code | 821455028049 |
What's In The Box | 1x media converter |
