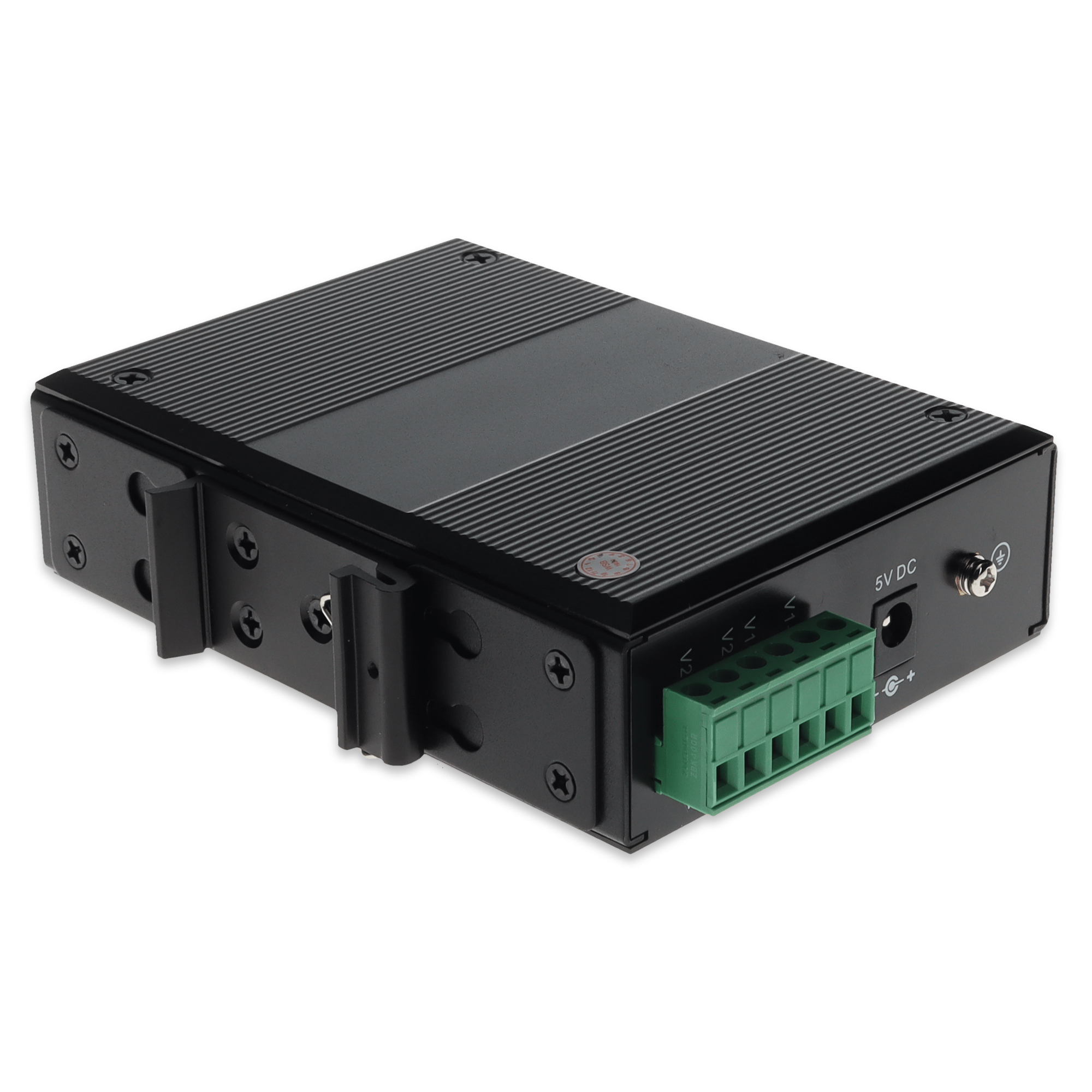

This is an industrial grade mini media converter with 30 watt POE+, that converts 1 10/100/1000Base-TX(RJ-45) to 1 1000Base-SX(SC) via 850nm multi-mode fiber (MMF) SC, with a maximum distance reach of 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This industrial grade product includes a terminal block and does not come with a power plug. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Technical Specification
Compatible OEM | Industry Standard |
Media Type | MMF |
Data Rate | 1Gbs |
Power Supply | Terminal Block |
Media Conversion Type | Copper to MMF |
Reach | 550m |
Wavelength | 850nm |
Type | Media Converter |
POE | POE+ |
Managed | Unmanaged |
IEEE Standard | 802.3at |
Connector1 Number of Ports | 1 |
Connector2 Number of Ports | 1 |
Environment | Industrial |
Connector Types | RJ-45 & SC |
POE Watts | 30W |
Physical Specification
Product Shipping Dimension(HxWxD) | 6.0 in. x 5.5 in. x 2.0 in. |
Product Shipping Weight(LB) | 1.5 |
Miscellaneous
Country Of Origin | Varies |
ECCN | EAR99 |
HTS-Harmonized Code (US) | 8517.62.0090 |
TAA Compliant | No |
UNSPSC Code | 43201553 |
UPC Code | 821455546598 |
What's In The Box | 1x media converter |
