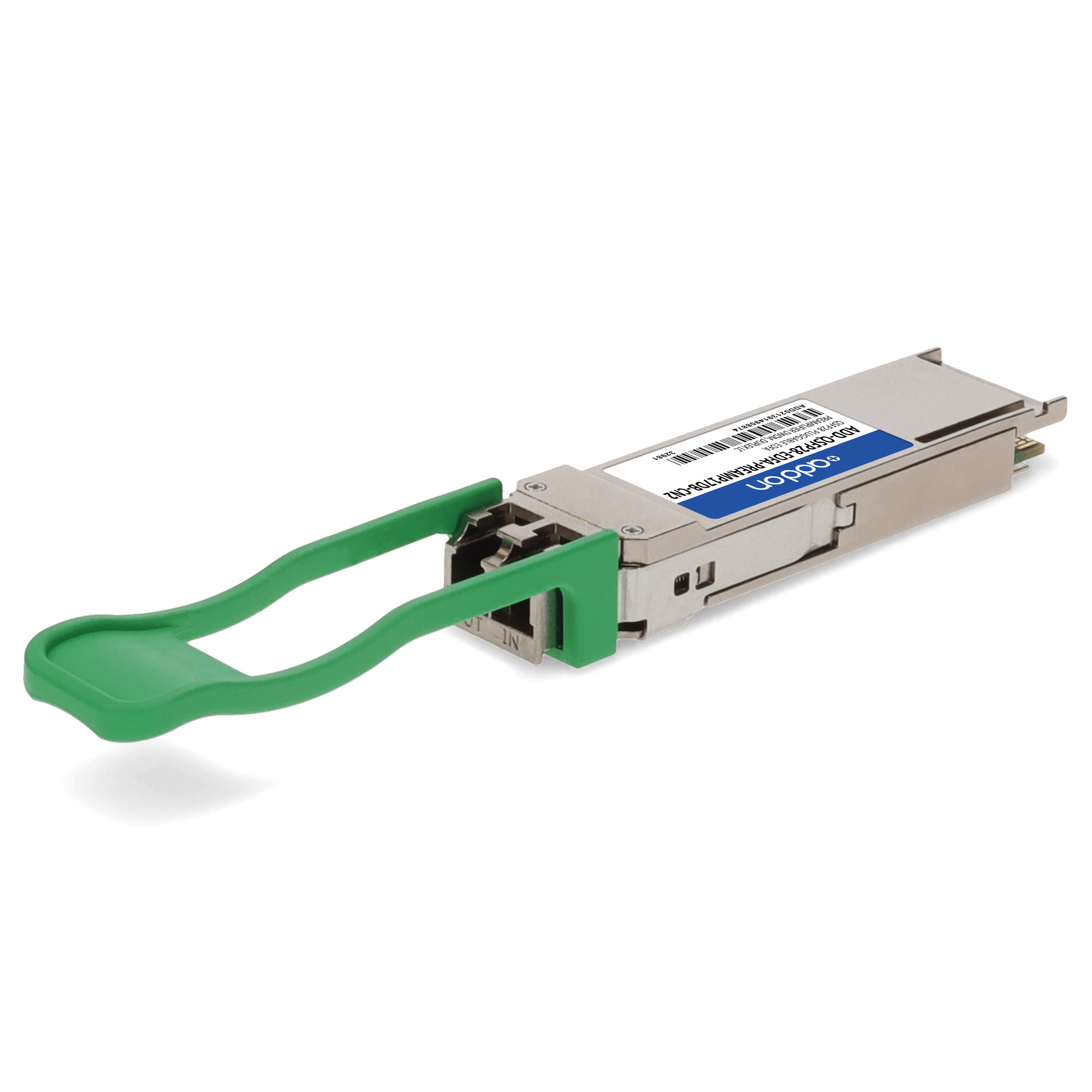

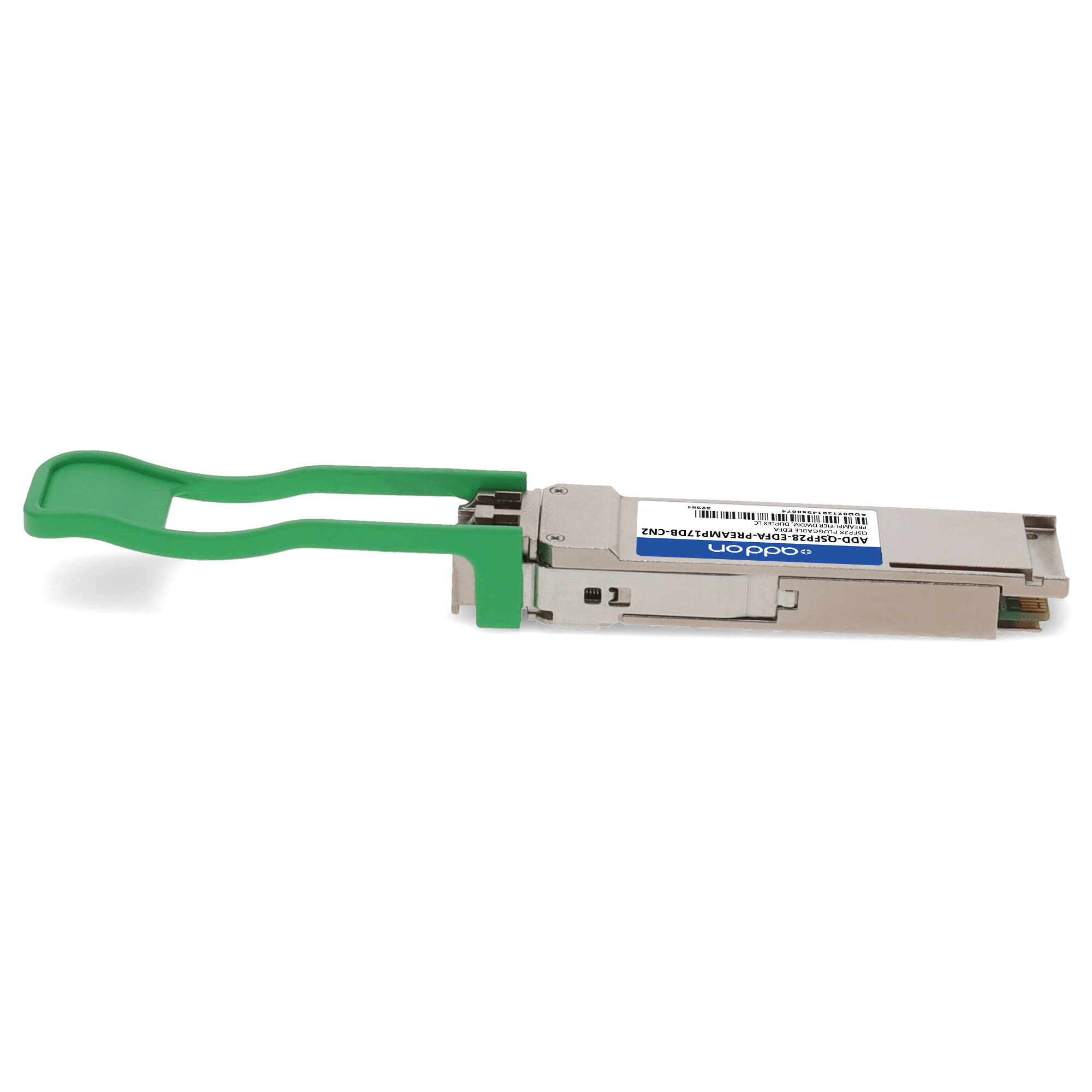

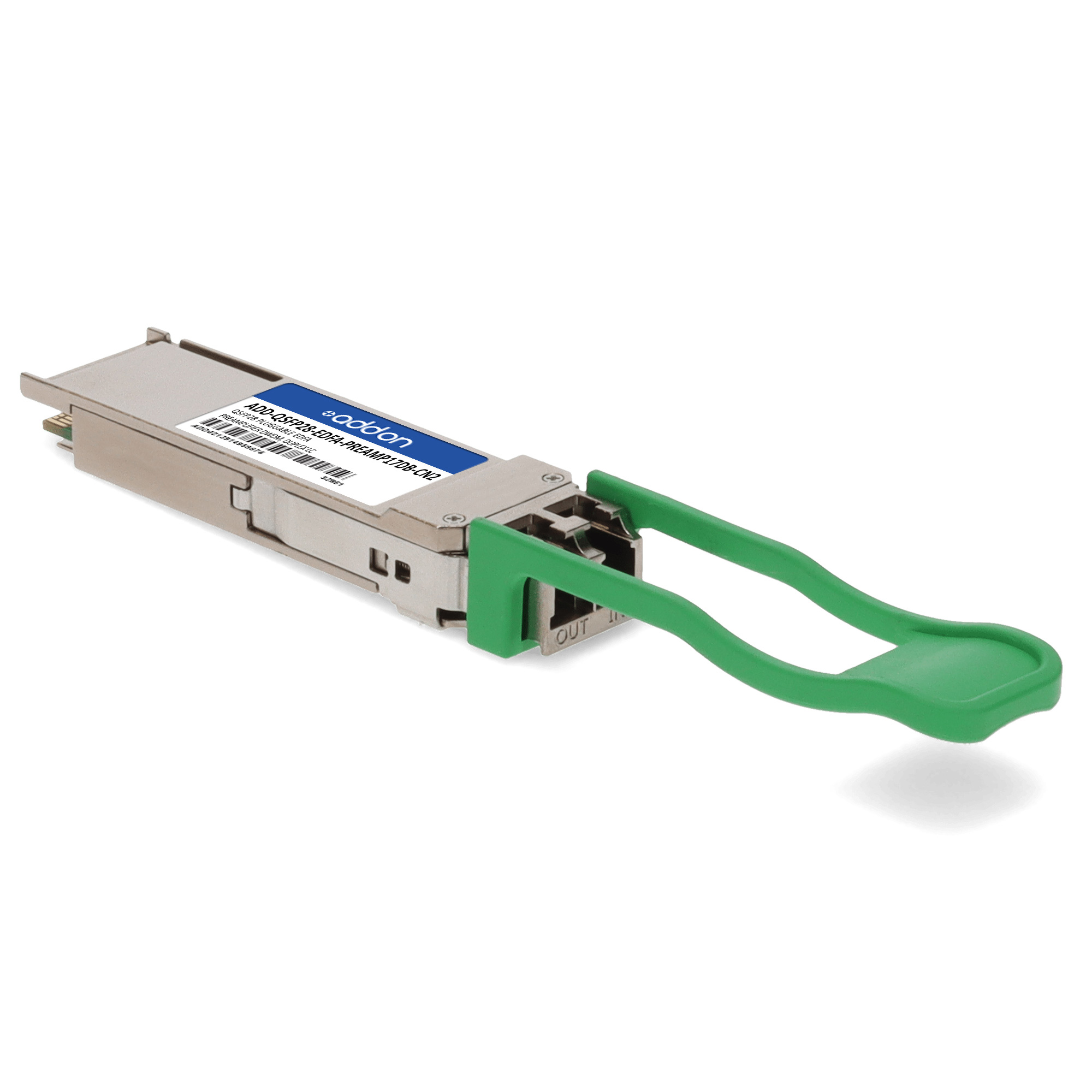

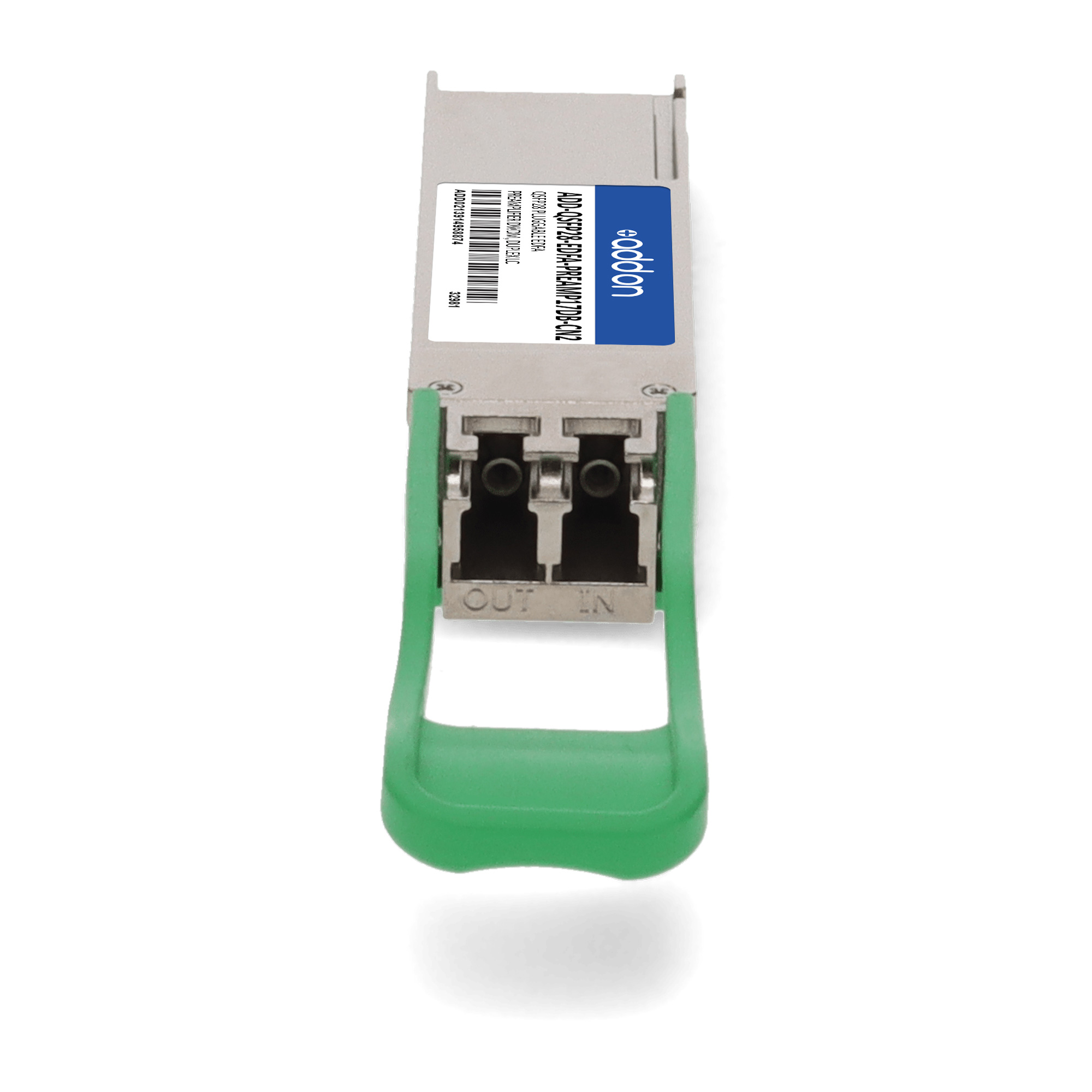

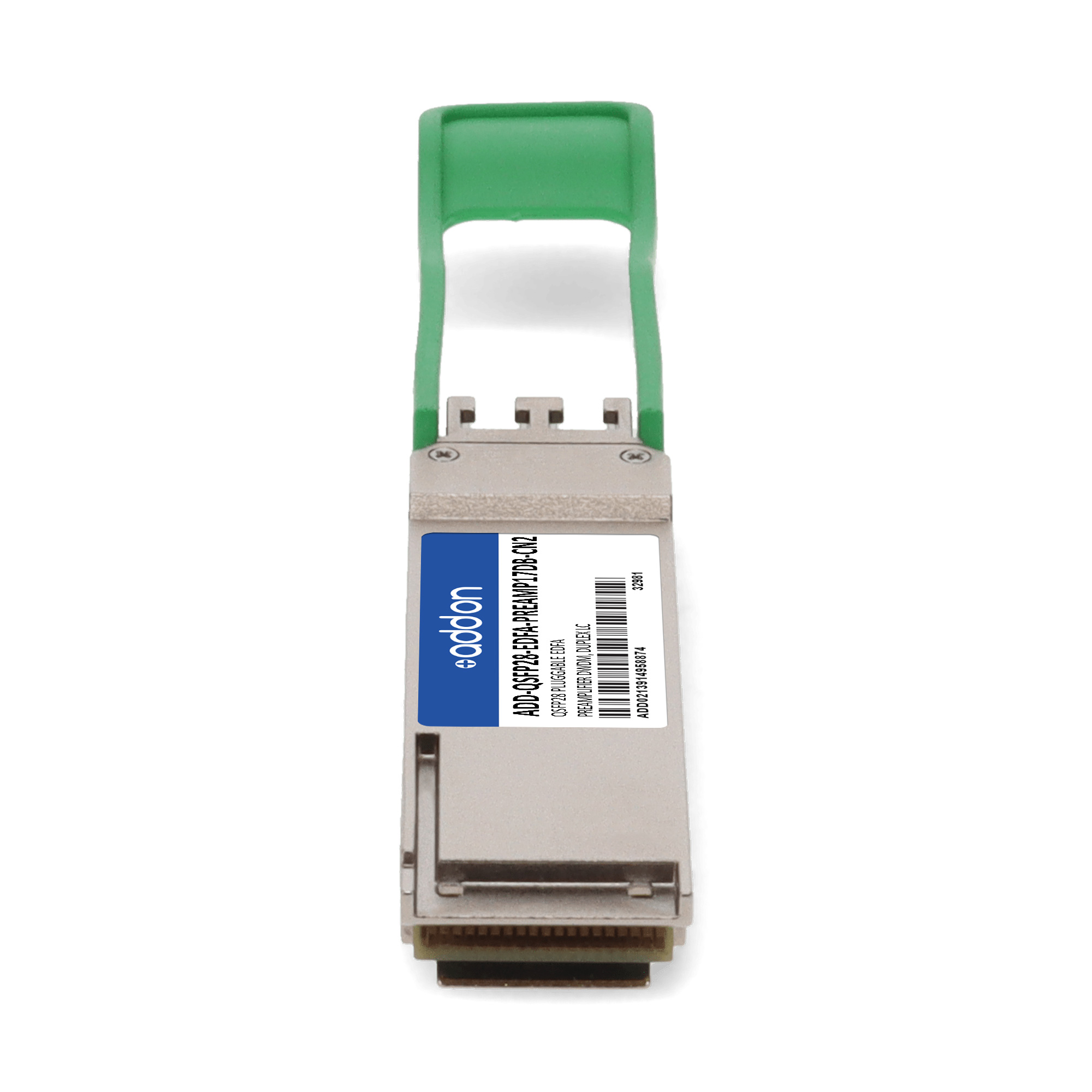

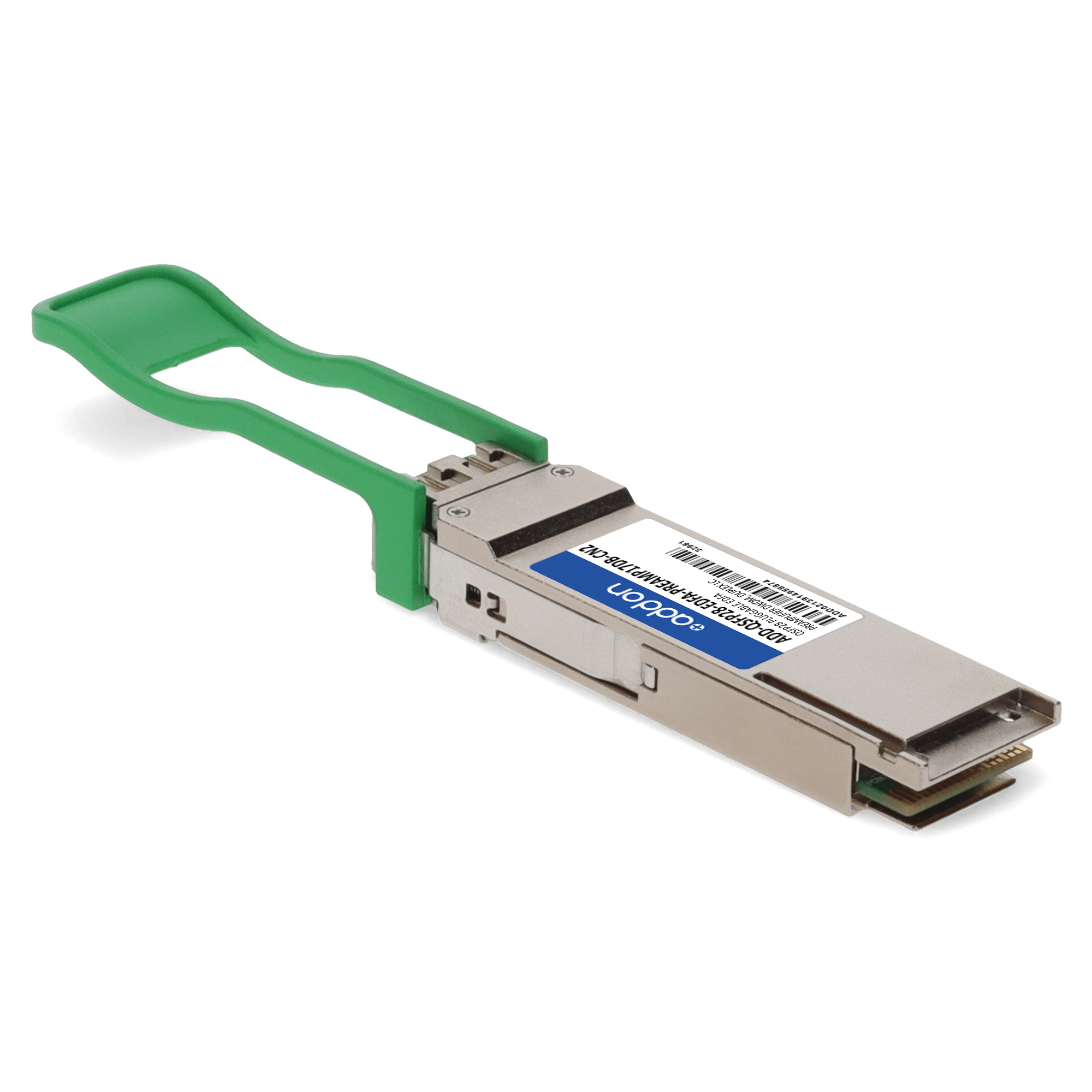

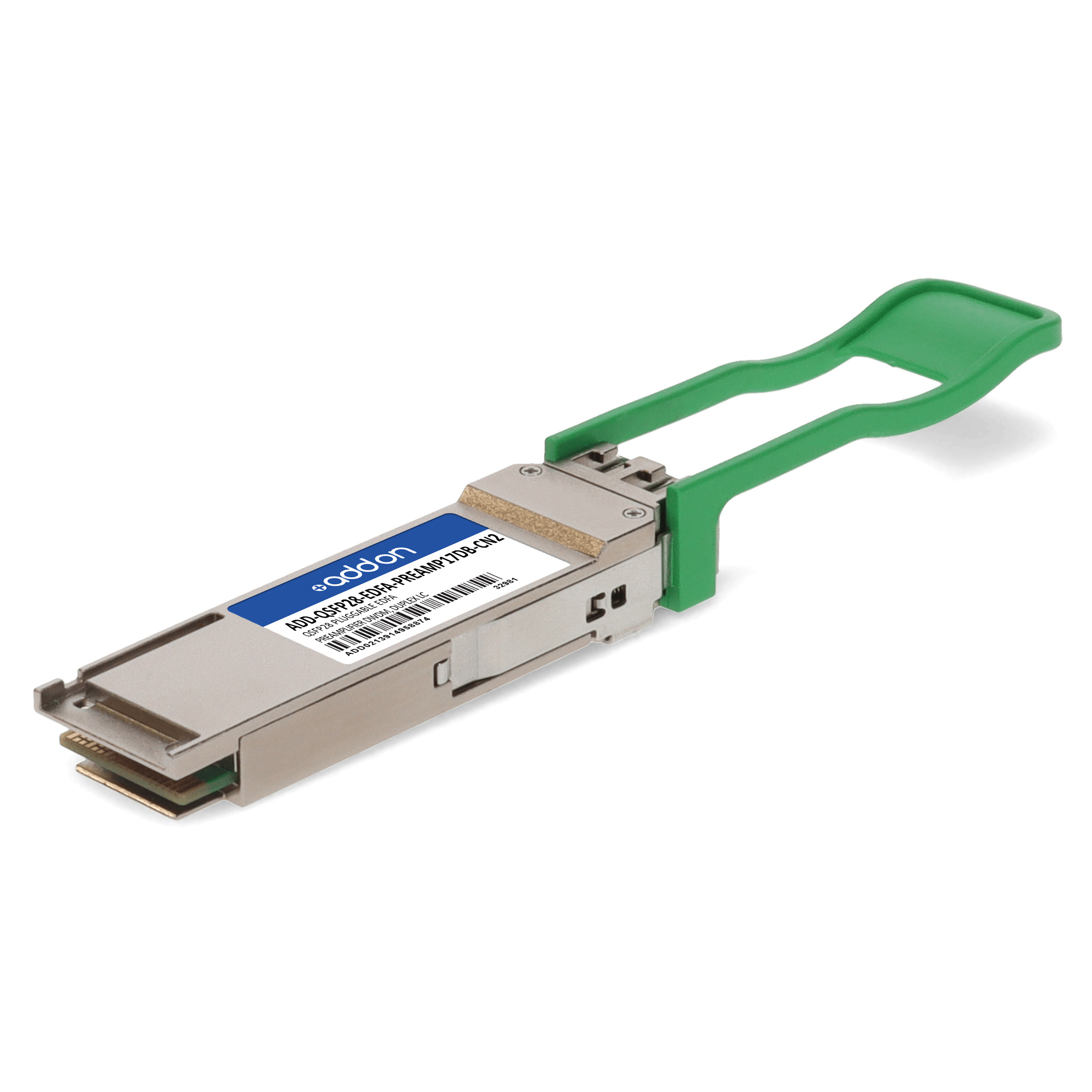

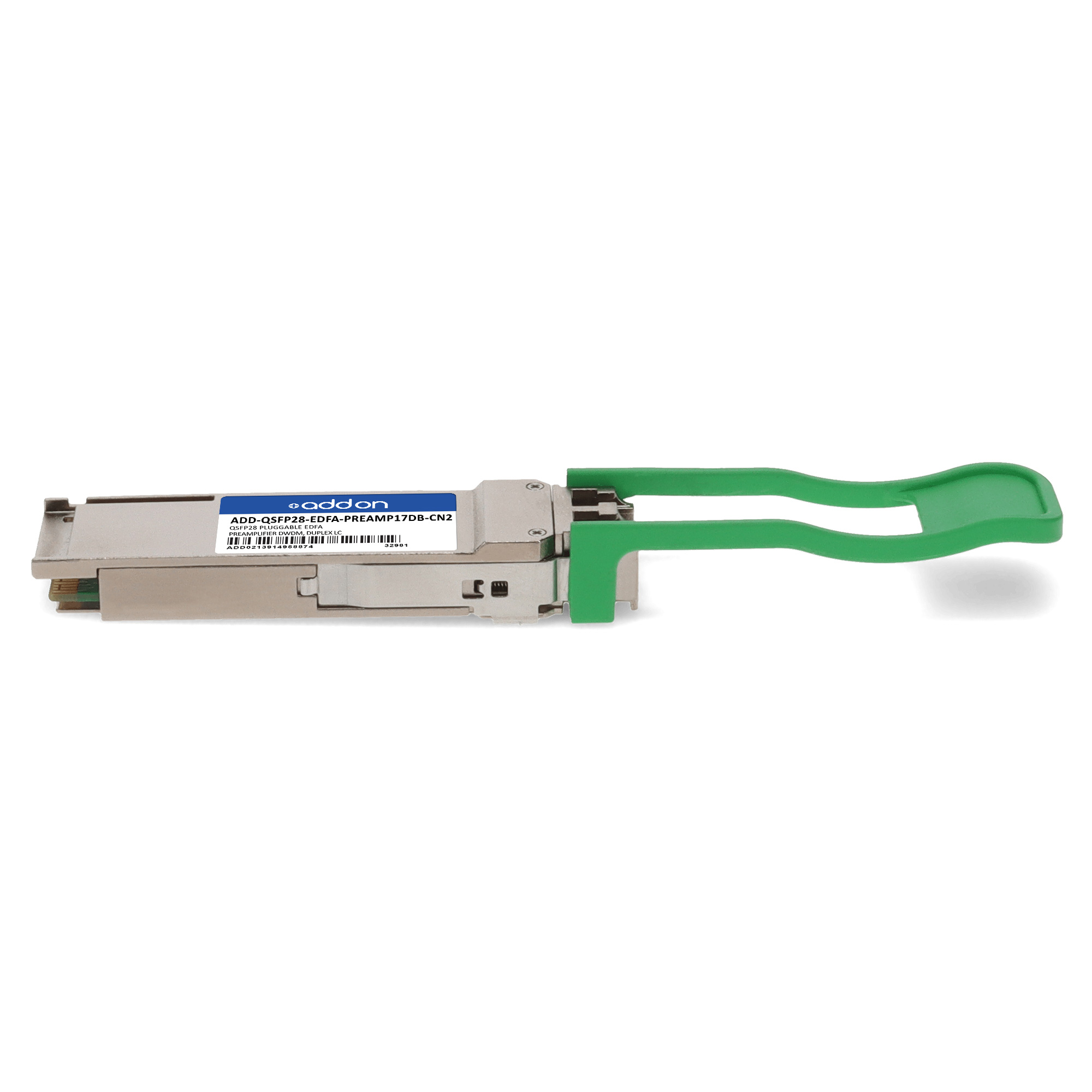

Ciena® Compatible QSFP28 Pluggable EDFA Preamplifier for DWDM, Duplex LC, Input power -30dBm to -10dBm, Nominal gain +17dB
SKU: ADD-QSFP28-EDFA-PREAMP17DB-CN2
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This Ciena® Compatible QSFP28 pluggable EDFA preamplifier offers a optical input range and provides a +17dB nominal gain to a C-Band DWDM link. The pluggable EDFA connects to a composite DWDM link via an LC connector. It is configured for Automatic Gain Control (AGC) by default and can be further configured via CLI prompt in supported hosts or by our coding and tuning system.
Technical Specification
| Connector 2 | LC |
| Connector 1 Gender | Male |
| Compatible OEM | Cisco® |
| Connector 1 | QSFP28 |
| Connector 2 Gender | Female |
| Network | DWDM |
| Input Power | -30dBm to -10dBm |
| Nominal Gain | +17dB |
Physical Specification
| Product Shipping Dimension(HxWxD) | 22 in. x 17 in. x 12 in. |
| Product Shipping Weight(LB) | 7.8 |
Miscellaneous
| HTS-Harmonized Code (US) | 8525.50.3035 |
| UNSPSC Code | 43222827 |
| ECCN | EAR99 |
| Country Of Origin | Varies |
| TAA Compliant | No |
| What's In The Box | 1x amplifier |
| Insight Electronics® | ADD-QSFP28-EDFA-PREAMP-17DB-CN2 |
Limited Lifetime
