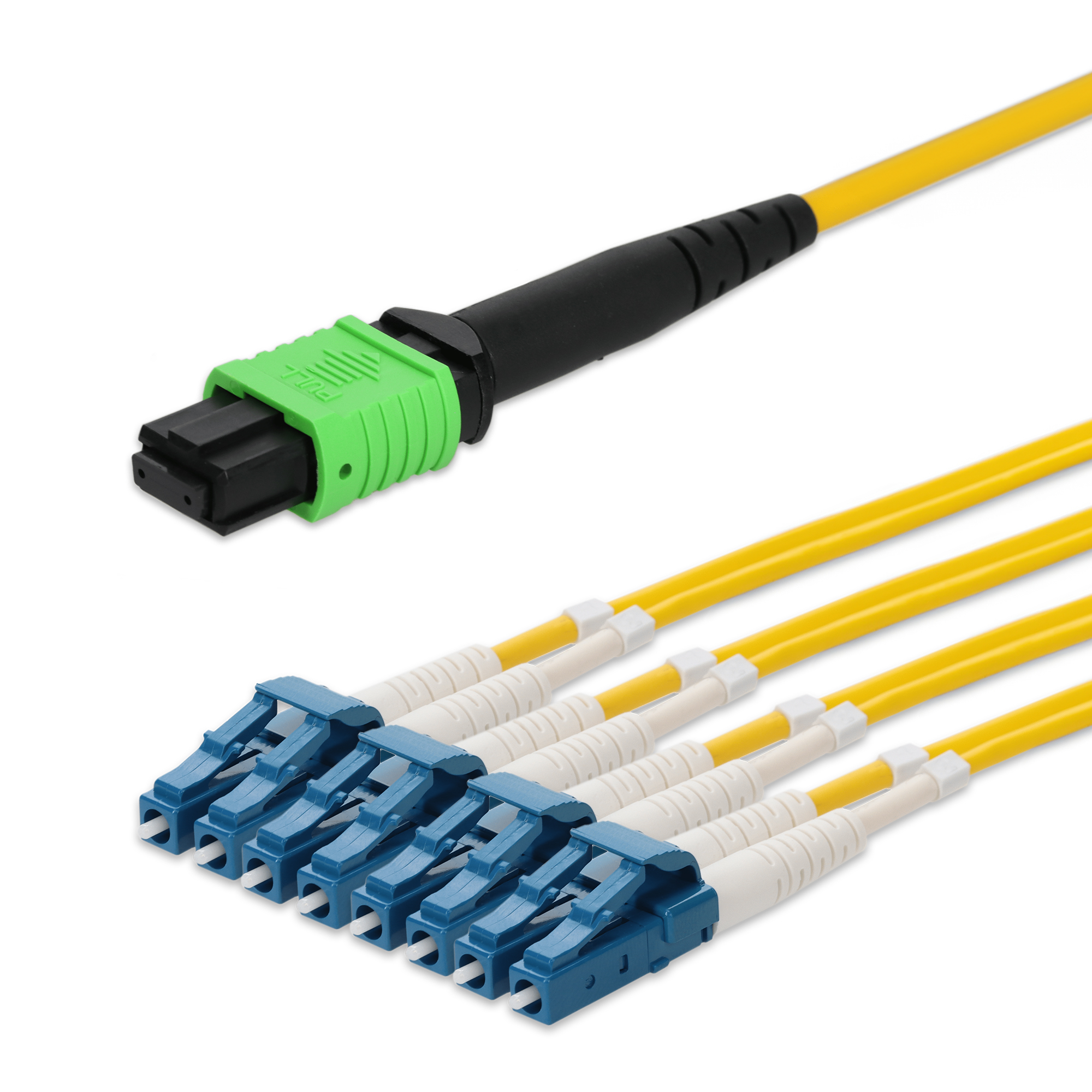

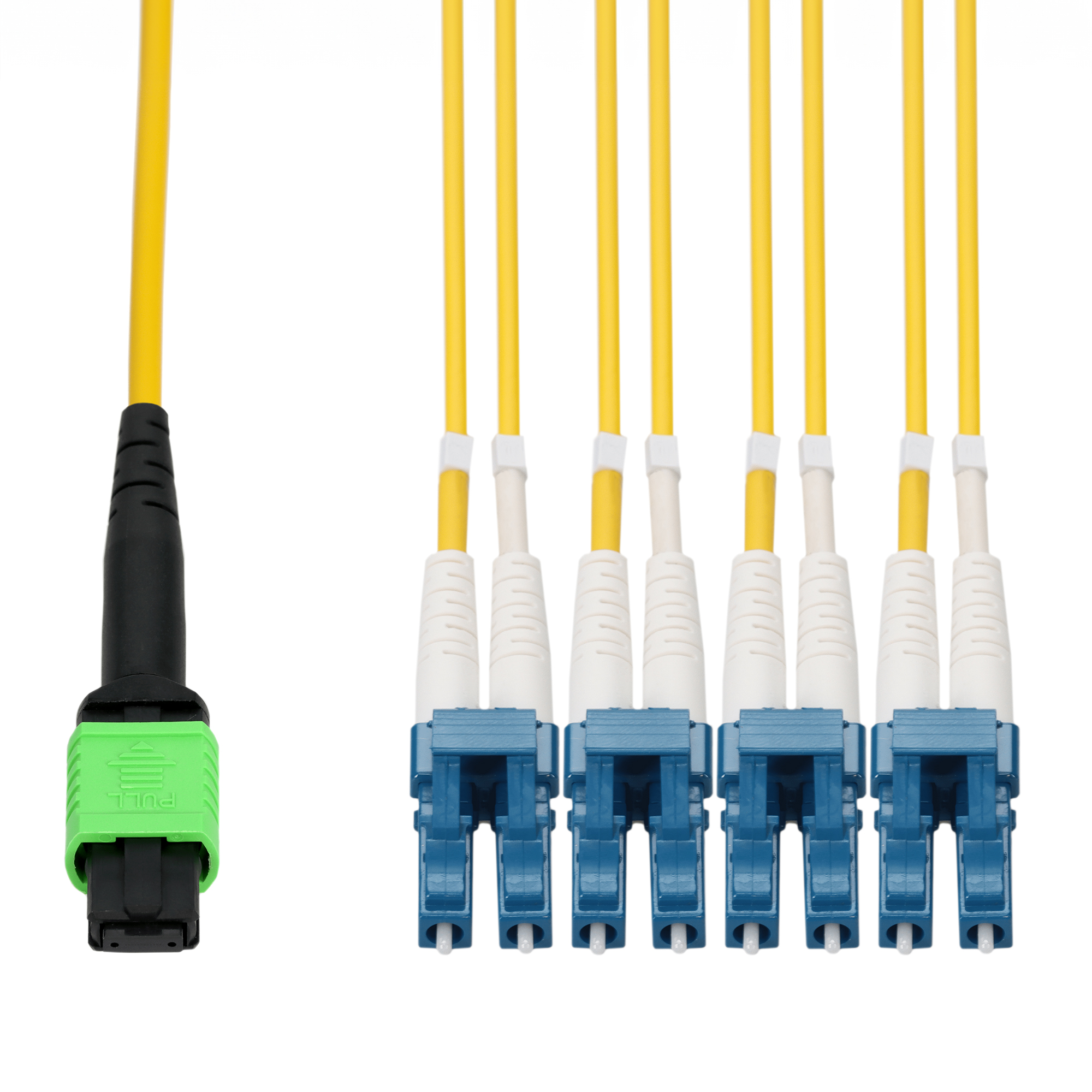

5m MPO/APC to 4xLC Duplex (8xLC)/UPC Yellow OS2 OFNR (Riser-Rated) 8-Strand Fiber Fanout Cable
SKU: CAB-M12P4LC-S5-AO
North America: 0 in stock
United Kingdom: 0 in stock
Available from the following dealers:
This is a 5m MPO/APC to 4xLC Duplex (8xLC)/UPC Yellow OS2 OFNR (Riser-Rated) 8-Strand Fiber Fanout Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Arista Networks® |
| Compatible With OEM Part Number(s) | CAB-M12P4LC-S5 |
| Environment | Indoor |
| Standard | OS2 |
| Fiber Type | SMF |
| Connector | MPO (Female) to 8xLC (Male) |
| Color | Yellow |
| Shielded | No |
| Strand Count | 8 |
| Cable Mode | Multiple |
| Jacket Type | Riser |
| Termination Type | Crossover |
| Core/Cladding | 9/125µm |
| Fiber Termination | APC - Angled Physical Contact |
| Length (m) | 5 |
| Length (ft) | 16.41 |
| Polarity | Method B |
| Cable Type | OS2 |
| Cable Length | 5m |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish | APC (Angled Physical Contact) |
| Connector 2 Ferrule Polish | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | Riser (OFNR) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Outer Diameter | 3.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 2 Color | Blue |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.4 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821455229705 |
| What's In The Box | 1x patch cable |
| AddOn Part# | CAB-M12P4LC-S5-AO |
| Ingram Micro® | 6E4597 |
| Insight Electronics® | CAB-M12P4LC-S5-AO |
| TD Synnex CA | 5764765 |
| TD Synnex US | 4102610 |
Limited Lifetime
