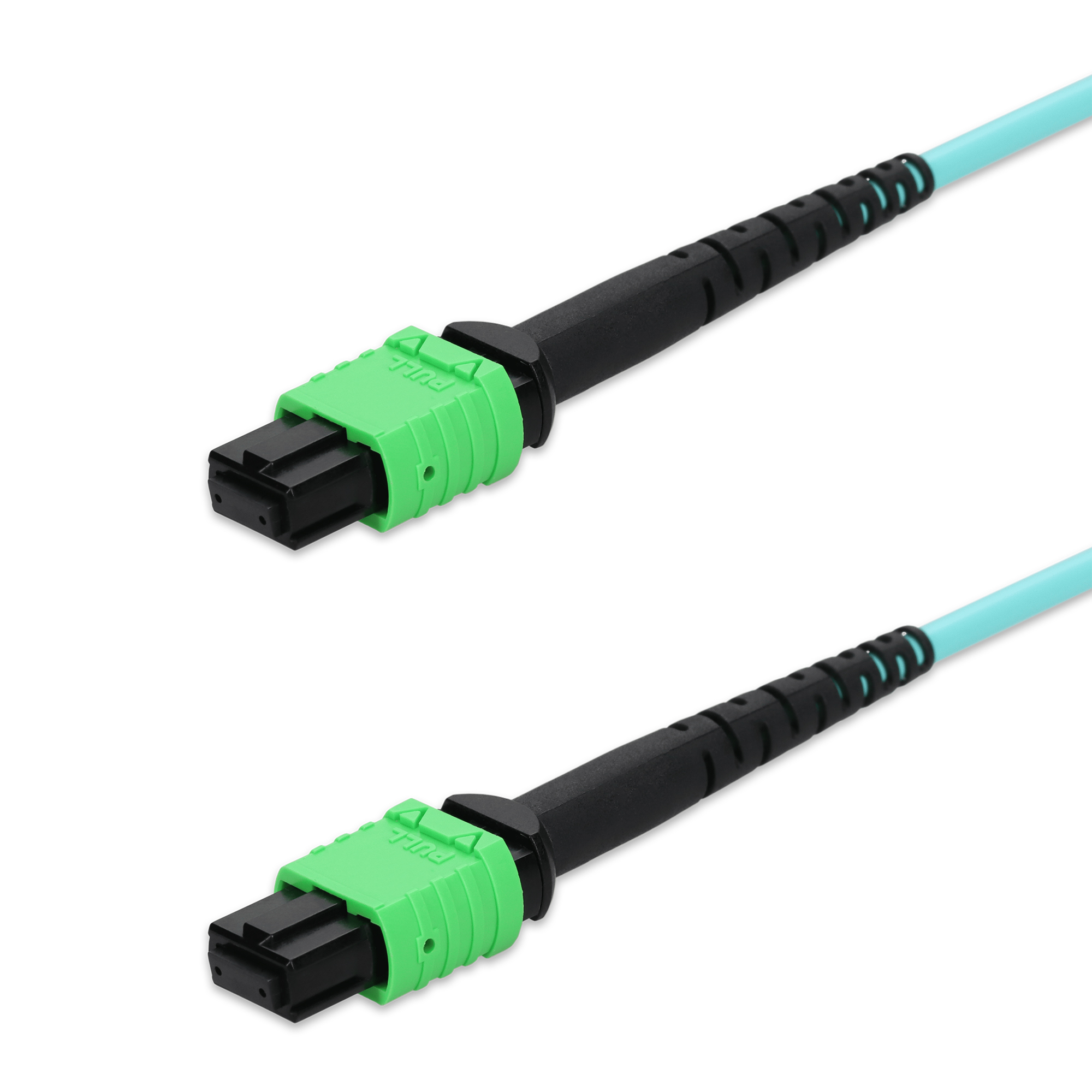

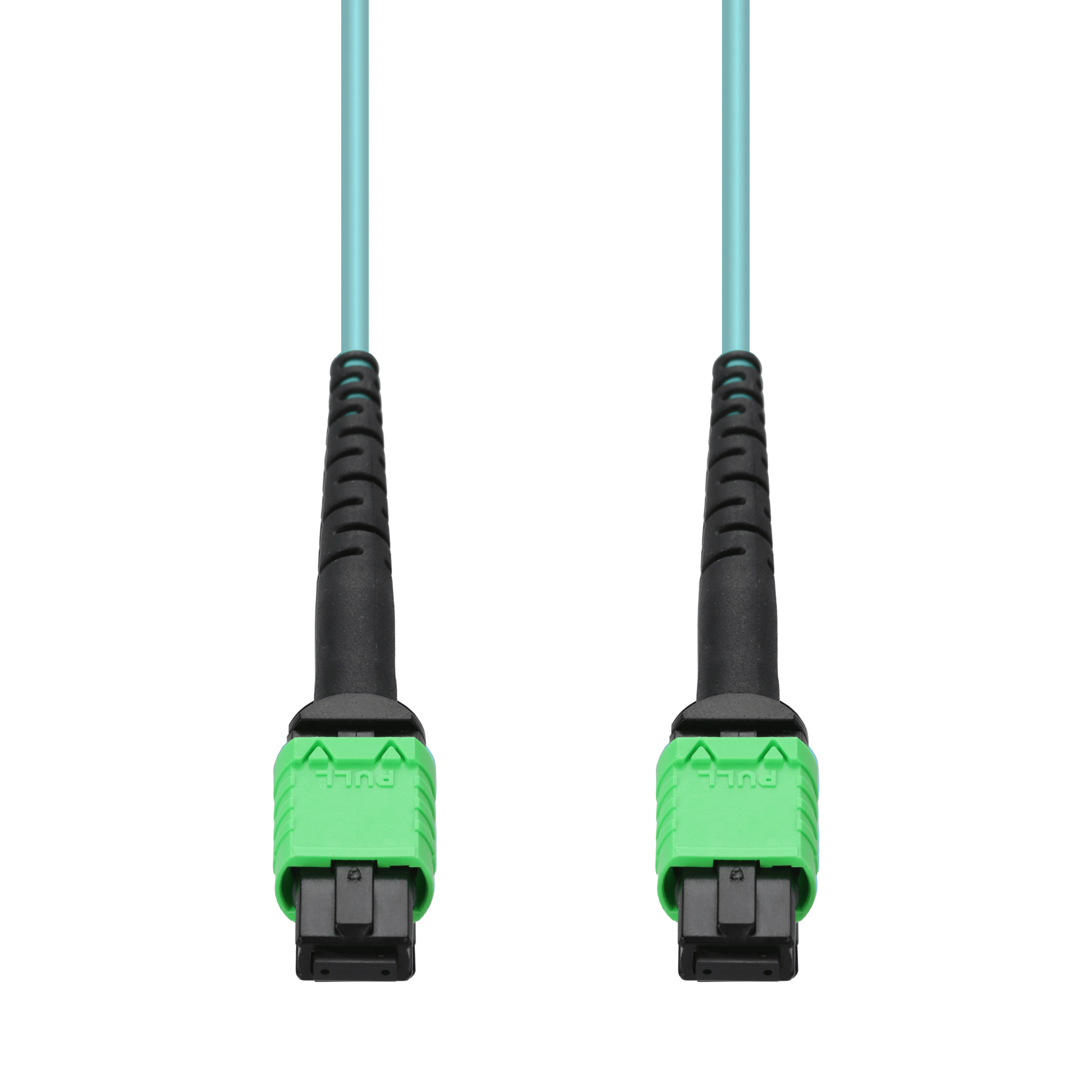

This is a 16 Fiber 10m MPO-16/APC (female) to MPO-16/APC (female) aqua OM4 Multiple riser-rated patch straight cable that is used for high-speed data transfer. An OM4 cable has a core size of 50m microns that supports 10 Gigabit Ethernet at lengths measuring up to 550 meters, and 100 Gigabit Ethernet measuring up to 150 meters and is reverse compatible with OM3. This riser (OFNR) cable is best suited for use in interior fiber-optic applications. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
Technical Specification
Compatible OEM | Industry Standard |
Standard | OM4 |
Fiber Type | LOMM |
Connector | MPO (Female) to MPO (Female) |
Color | Aqua |
Shielded | No |
Strand Count | 16 |
Cable Mode | Multiple |
Jacket Type | Riser |
Termination Type | Straight |
Core/Cladding | 50/125µm |
Fiber Termination | APC - Angled Physical Contact |
Length (m) | 10 |
Length (ft) | 32.8 |
Physical Specification
Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
Product Shipping Weight(LB) | 1.6 |
Kit | No Kit - 1 Piece |
Miscellaneous
Country Of Origin | China |
ECCN | EAR99 |
HTS-Harmonized Code (UK) | 85447000 |
HTS-Harmonized Code (US) | 8544.70.0000 |
TAA Compliant | No |
UNSPSC Code | 26121609 |
UPC Code | 195285767219 |
What's In The Box | 1x patch cable |
