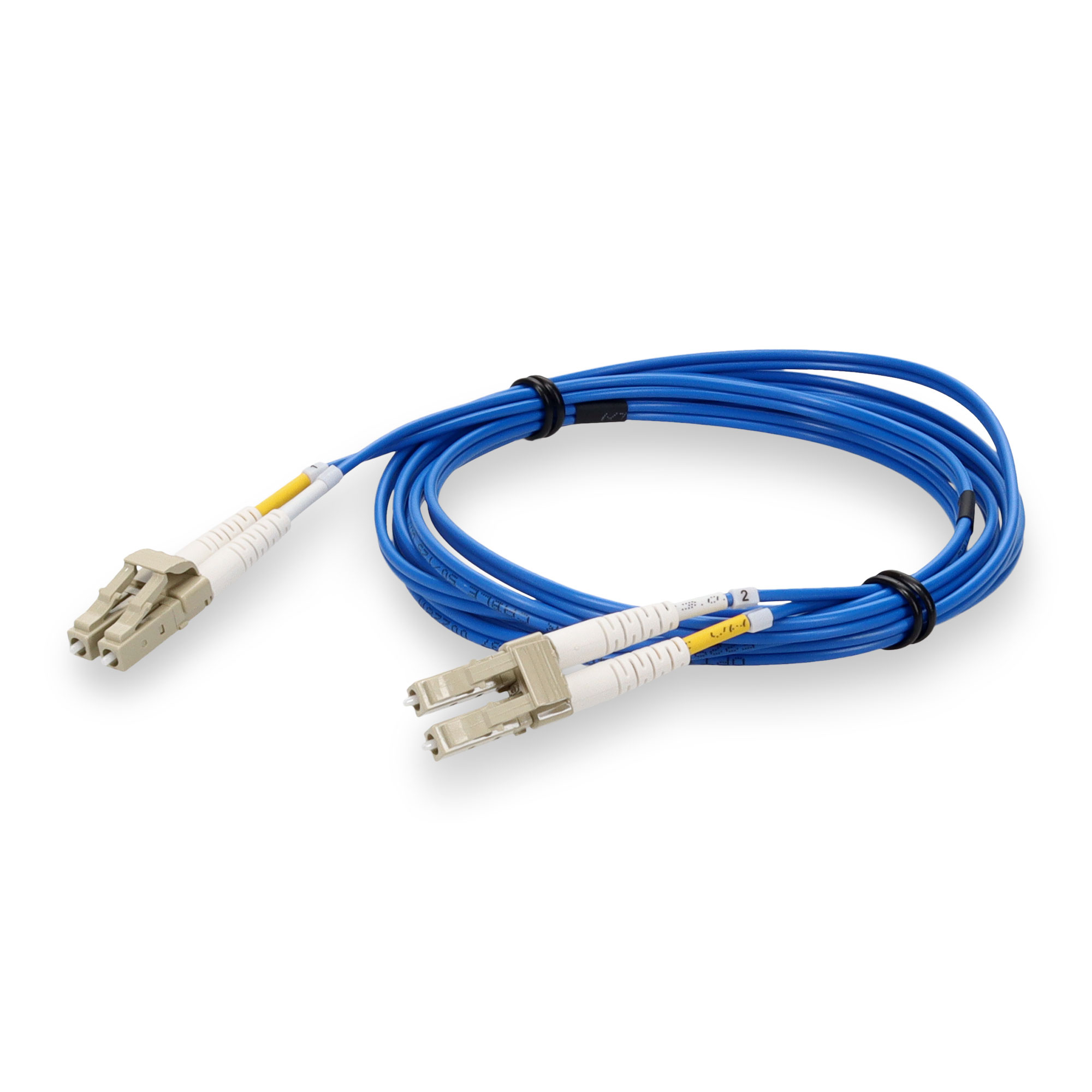

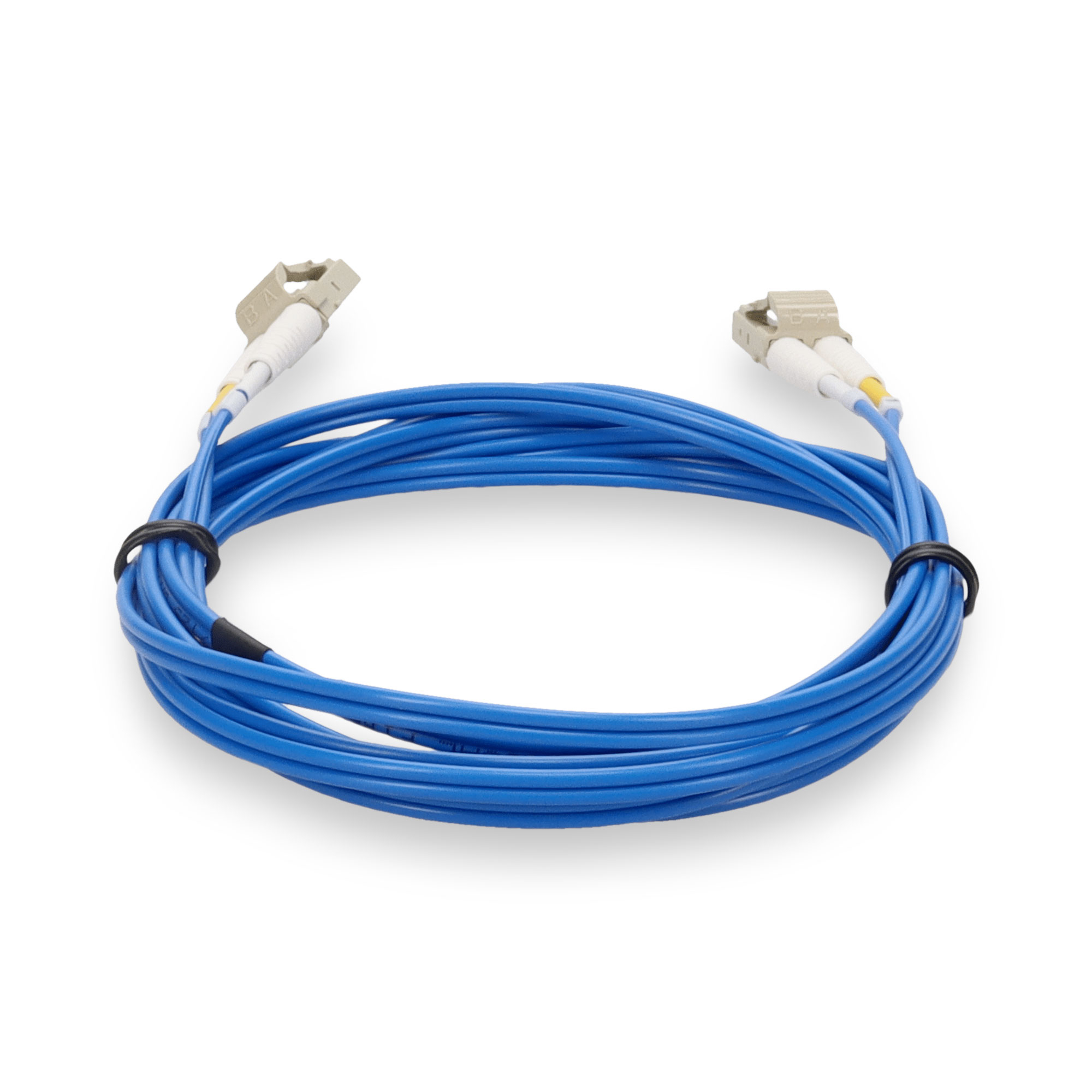

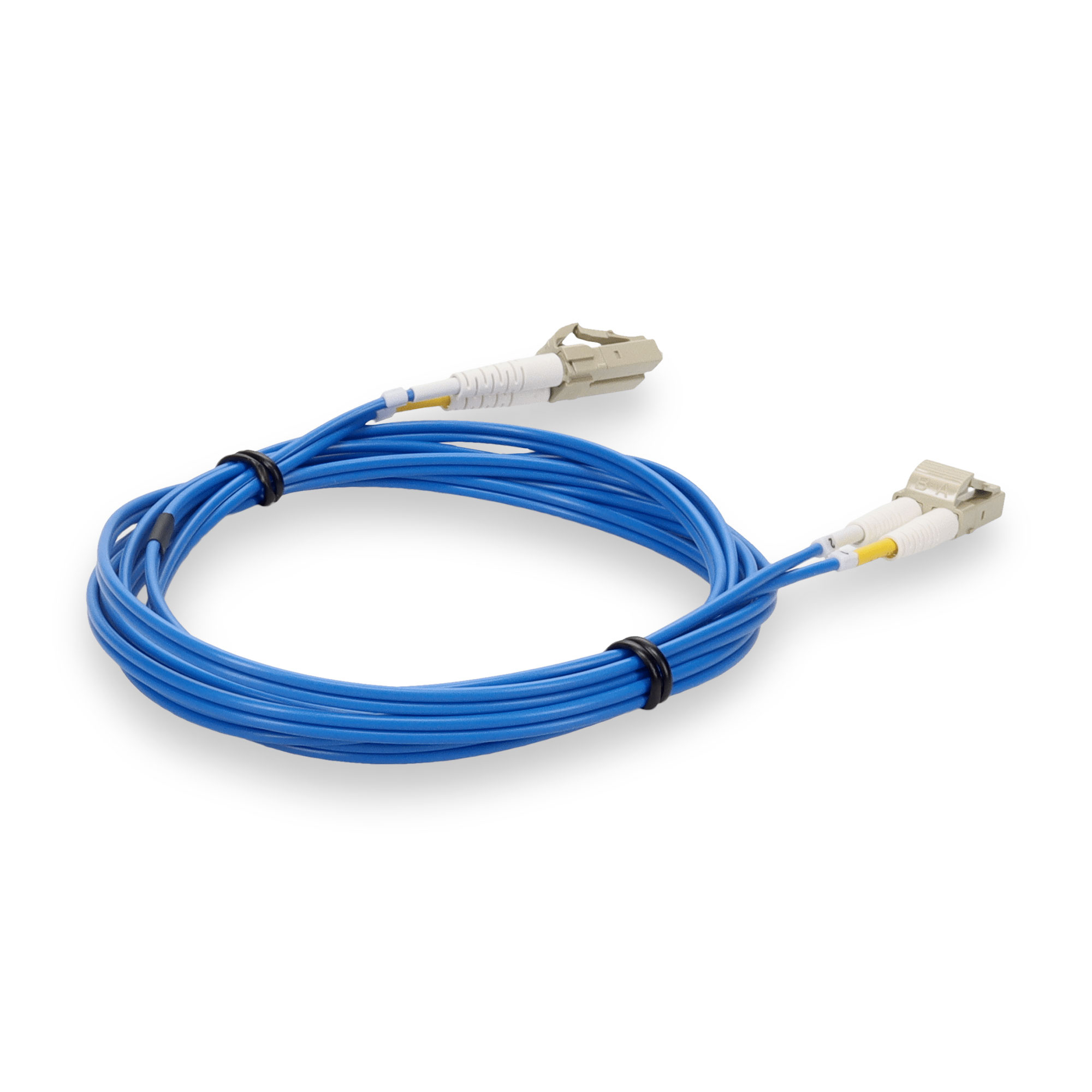

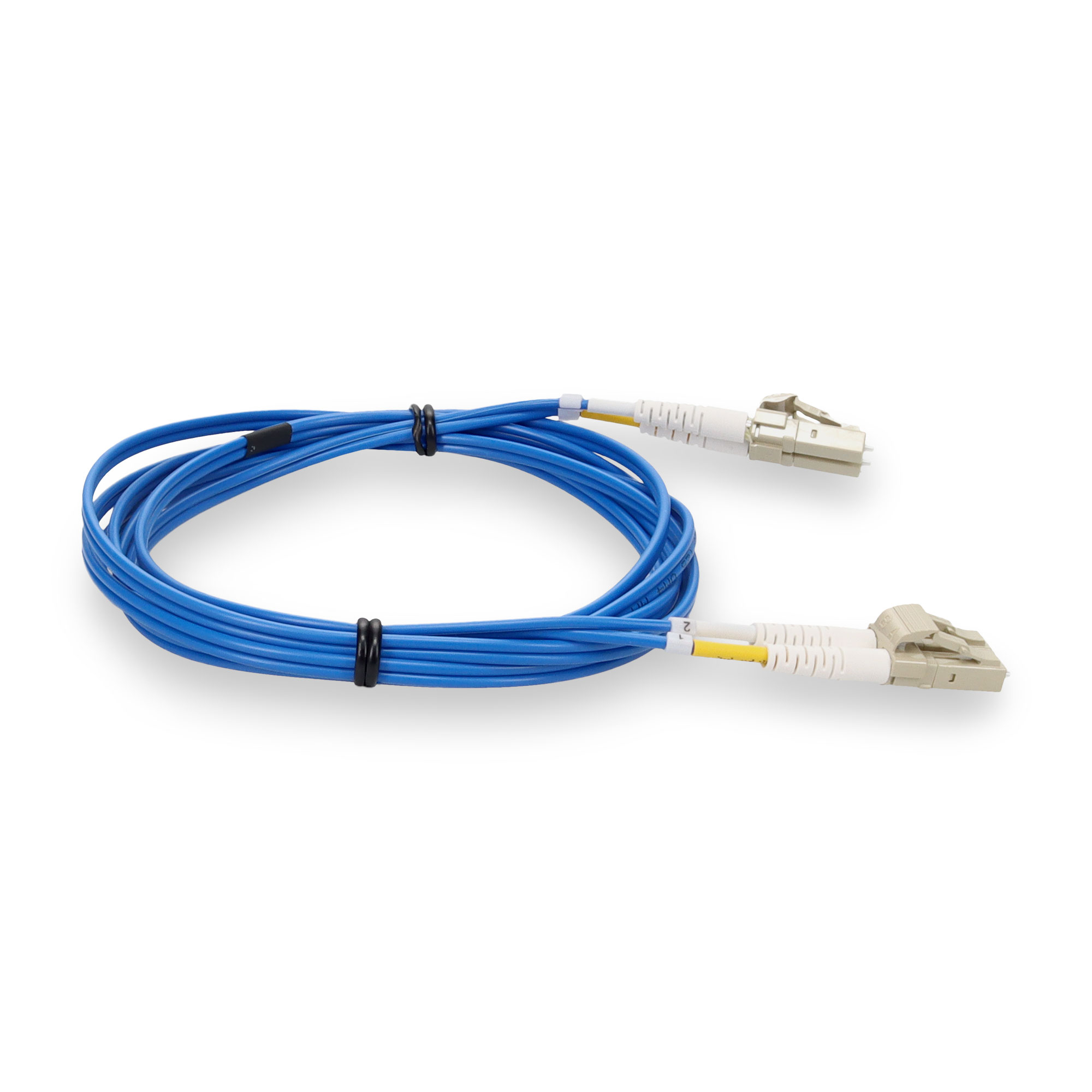

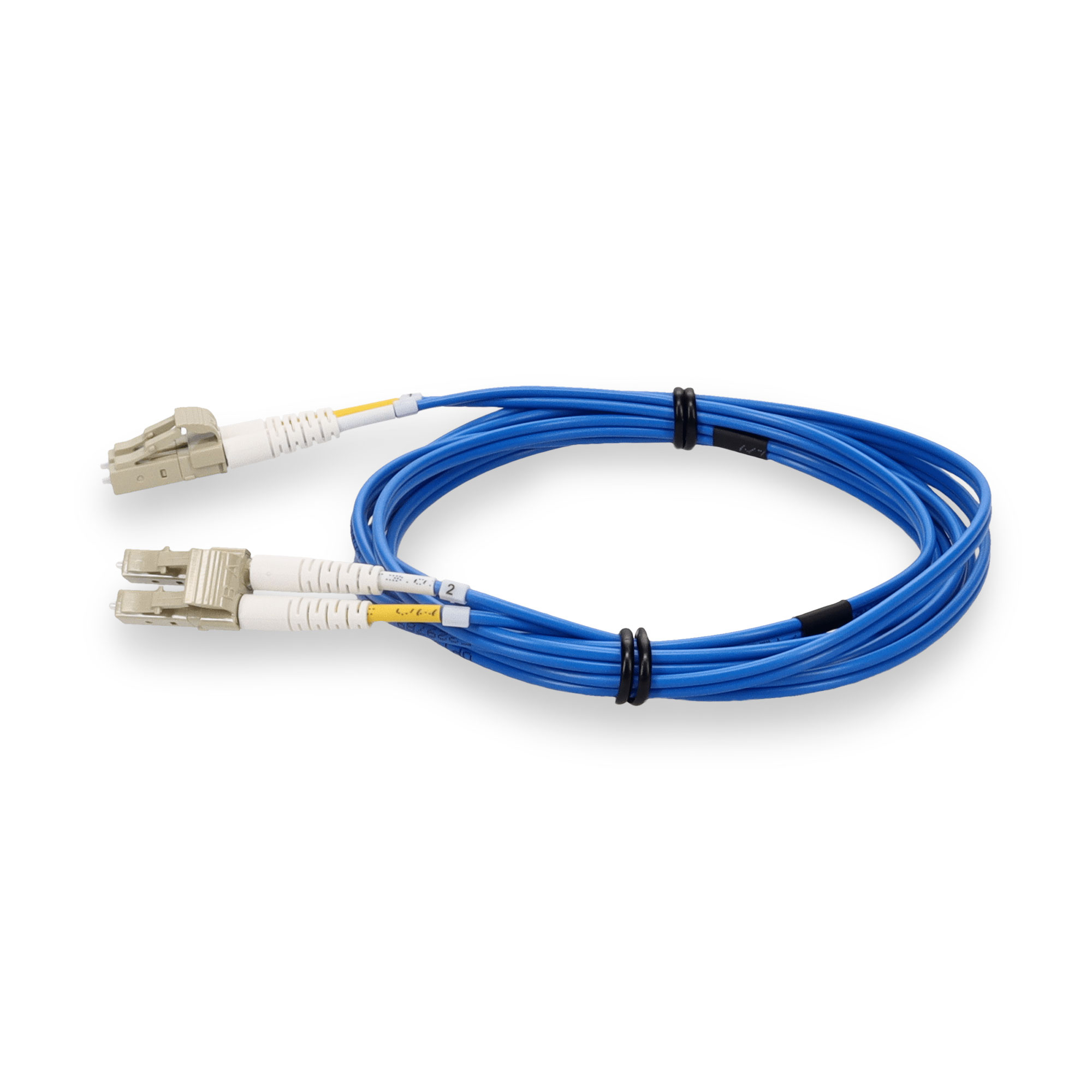

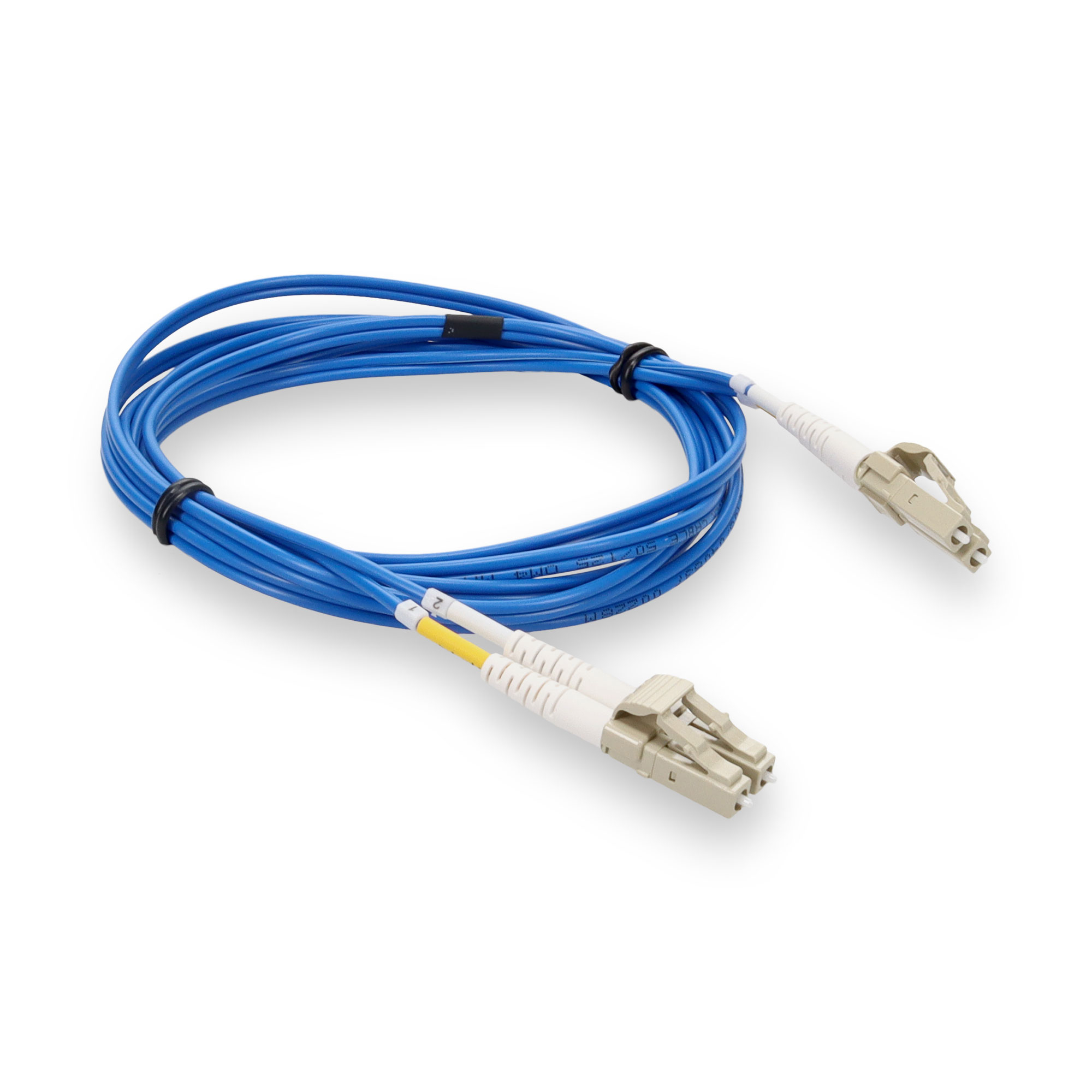

3m LC to LC Blue OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable
SKU: ADD-LC-LC-3M5OM4-BE
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This is a 3m LC to LC Blue OM4 Duplex OFNR (Riser-Rated) Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Standard | OM4 |
| Fiber Type | MMF |
| Connector | LC (Male) to LC (Male) |
| Color | Blue |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Riser |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 3 |
| Length (ft) | 9.84 |
| Polarity | Type A-B |
| Cable Type | OM4 |
| Cable Length | 3m |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | Riser (OFNR) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Outer Diameter | 2.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Beige |
| Connector 2 Color | Beige |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.3 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821456161912 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-LC-LC-3M5OM4-BE |
| Ingram Micro® | 09XL84 |
| Ingram Micro® Canada | B87059 |
| Insight Electronics® | ADD-LC-LC-3M5OM4-BE |
| TD Synnex CA | 7326773 |
| TD Synnex US | 6627839 |
Limited Lifetime
