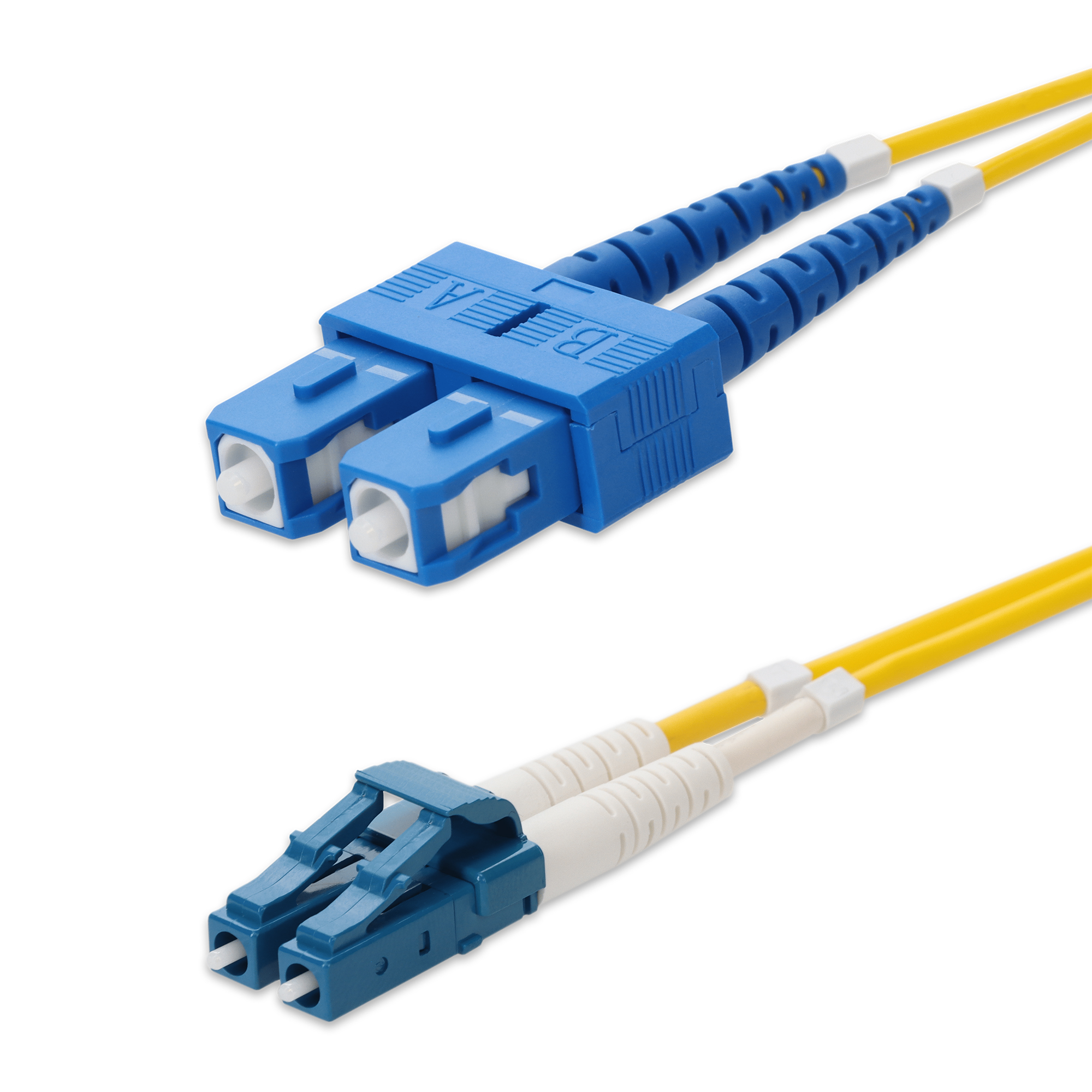

7m SC to LC Yellow OS2 Duplex LSZH SMF Fiber Patch Cable
SKU: ADD-SC-LC-7M9SMFLZ
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This is a 7m SC to LC Yellow OS2 Duplex LSZH SMF Fiber Patch Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Standard | OS2 |
| Fiber Type | SMF |
| Connector | LC (Male) to SC (Male) |
| Color | Yellow |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | LSZH |
| Termination Type | Crossover |
| Core/Cladding | 9/125µm |
| Fiber Termination | UPC - Ultra Physical Contact |
| Length (m) | 7 |
| Length (ft) | 22.97 |
| Polarity | Type A-B |
| Cable Type | OS2 |
| Cable Length | 7m |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | General Purpose (OFNG) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Outer Diameter | 2.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Blue |
| Connector 2 Color | Blue |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.5 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 821456535928 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-SC-LC-7M9SMFLZ |
| Ingram Micro® | 8GP374 |
| Ingram Micro® UK | 4F31698 |
| Insight Electronics® | ADD-SC-LC-7M9SMFLZ |
Limited Lifetime
