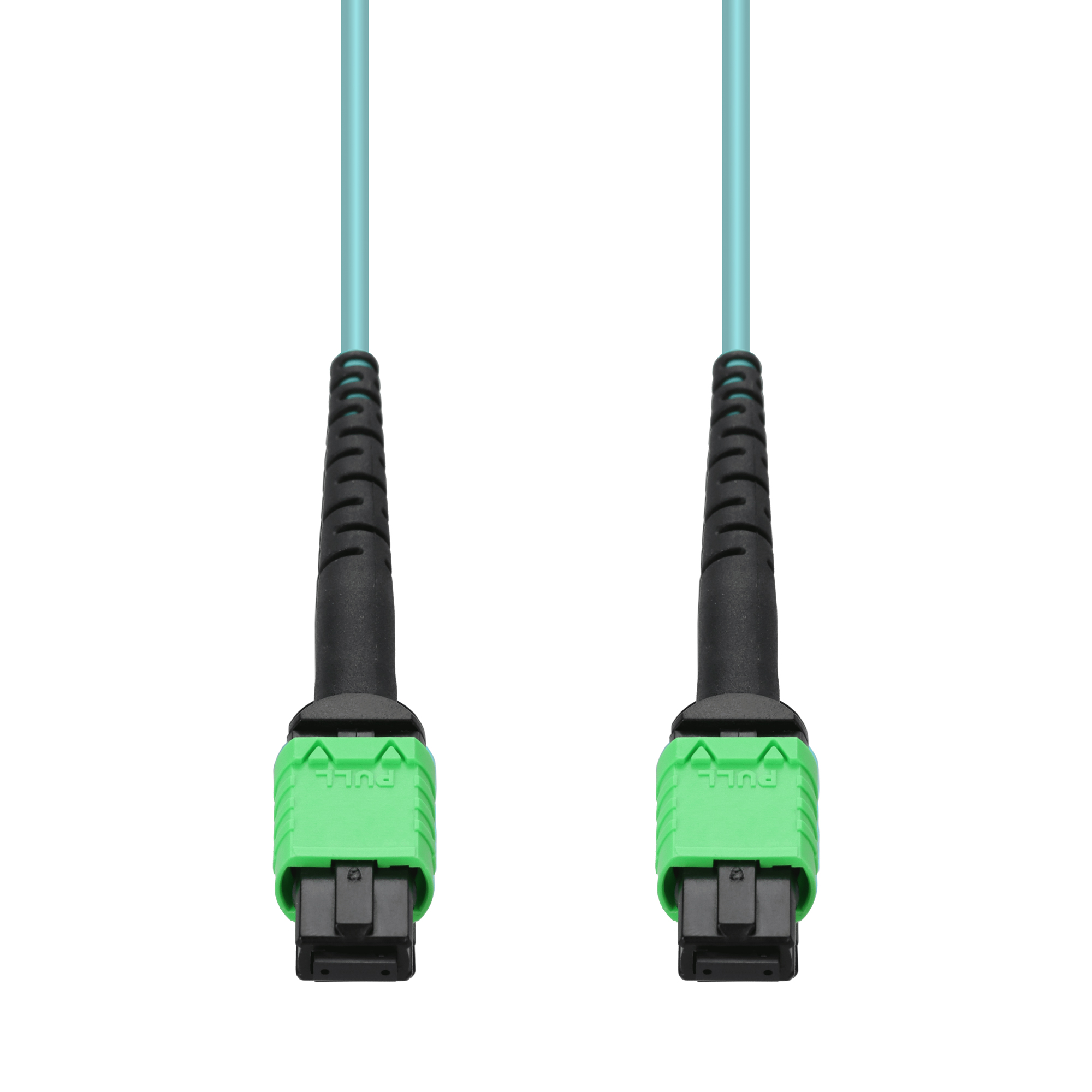

25m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable
SKU: MFP7E10-N025-AO
United Kingdom: 40 in stock
North America: 0 in stock
This is a 25m MPO/APC to MPO/APC Aqua OM4 LSZH 12-Strand Fiber Patch Cable. OM4 fiber optic cable is a high-performance multimode fiber optimized for high-speed data transmission, supporting up to 100G over distances of up to 150 meters. Ideal for data centers and large-scale network infrastructures, it delivers superior bandwidth and reliability for demanding business applications. LSZH (Low Smoke Zero Halogen) fiber cable jackets are designed to minimize toxic smoke and harmful emissions in the event of a fire, making them ideal for enclosed or high-traffic areas. These cables provide enhanced safety and environmental protection, making them a popular choice for businesses prioritizing workplace safety and eco-friendly infrastructure. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.
Technical Specification
| Compatible OEM | Mellanox® |
| Environment | Indoor |
| Standard | OM4 |
| Fiber Type | MMF |
| Connector | MPO (Female) to MPO (Female) |
| Color | Aqua |
| Shielded | No |
| Strand Count | 12 |
| Cable Mode | Multiple |
| Jacket Type | LSZH |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | APC - Angled Physical Contact |
| Length (m) | 25 |
| Length (ft) | 82.03 |
| Polarity | Method B |
| Cable Type | OM4 |
| Cable Length | 25m |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish | APC (Angled Physical Contact) |
| Connector 2 Ferrule Polish | APC (Angled Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | General Purpose (OFNG) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Outer Diameter | 3.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Green |
| Connector 2 Color | Green |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 1.4 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | No |
| UNSPSC Code | 26121609 |
| UPC Code | 195285837905 |
| What's In The Box | 1x patch cable |
Limited Lifetime
