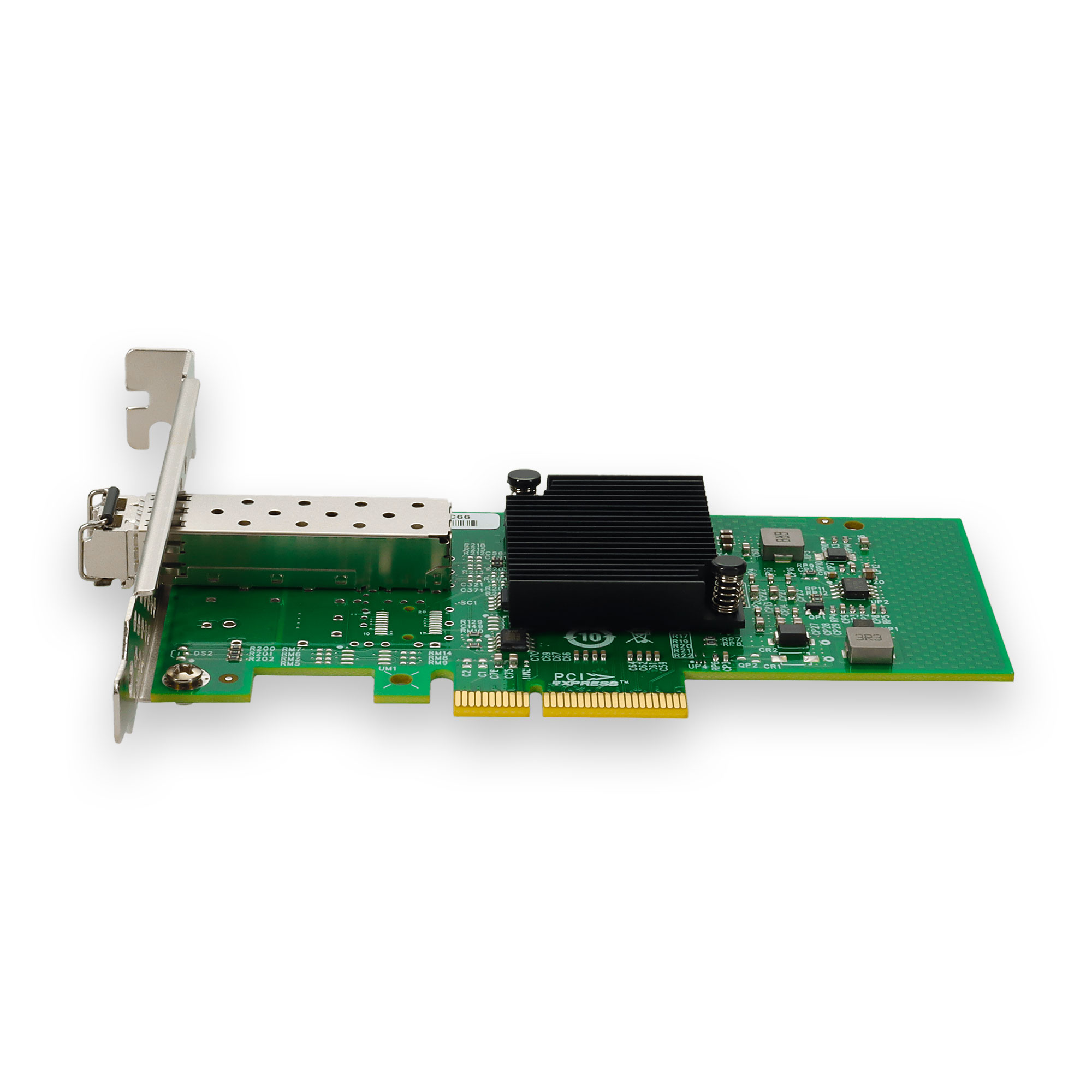

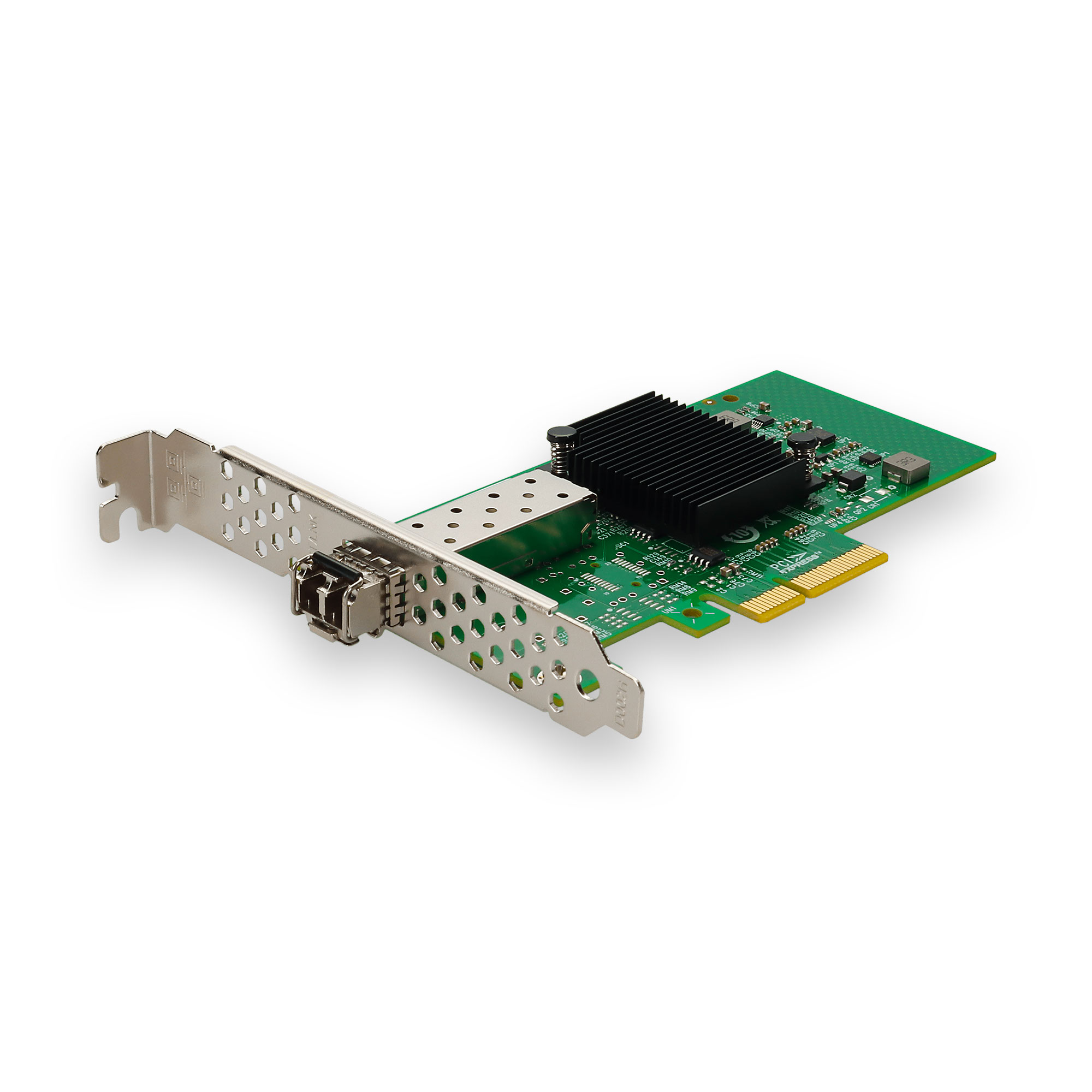

Allied Telesis® AT-2914SX/LC-001 Comparable 1Gbs Single Open SFP Port 550m MMF PCIe 2.0 x4 Network Interface Card w/1000Base-SX SFP Transceiver
SKU: AT-2914SX/LC-001-AO
United Kingdom: 0 in stock
North America: 122 in stock
Available from the following dealers:
This is an Allied Telesis® AT-2914SX/LC-001 comparable Gigabit Ethernet PCIe 2.0 x4 network interface card with 1 included SX SFP transceiver that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single open SFP port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Compatible OEM | Allied Telesis® |
| Compatible With OEM Part Number(s) | AT-2914SX/LC-001 |
| Reach | 550m |
| Chipset | Intel 82574 |
| Compatible OS | Windows Server 2012, Windows 7 (32 and 64 bit), Windows Server 2008 R2, Windows Small Business Server 2006, Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Windows 8 (32 and 64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 9.x, Windows Vista Final (32 and 64 bit), Windows XP (and Pro) (32 and 64 bit), Windows 2000 (and Server and Advanced), Netware 6.5 |
| Bus Type | PCIe 2.0 |
| Bus Width | PCIEx4 |
| Data Rate | 1Gbs |
| Media Type | MMF |
| External Connector | SFP |
| Type | Network Interface Card |
| Additional Information | with 1 1000Base-SX SFP transceiver |
| Number of Ports | 1 Port |
| Data Protocol | Ethernet |
| Strand Count | 0 |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5.2 in. x 0.9 in. x 4.7 in. |
| Product Shipping Weight(LB) | 0.5 |
| Kit | 2 piece |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | No |
| UNSPSC Code | 43201411 |
| UPC Code | 821455855645 |
| What's In The Box | 1x network interface card, 1x transceiver |
| AddOn Part# | AT-2914SX/LC-001-AO |
| Ingram Micro® | 07YB98 |
| Insight Electronics® | AT-2914SX/LC-001-AO |
| TD Synnex US | 6535666 |
Limited Lifetime
