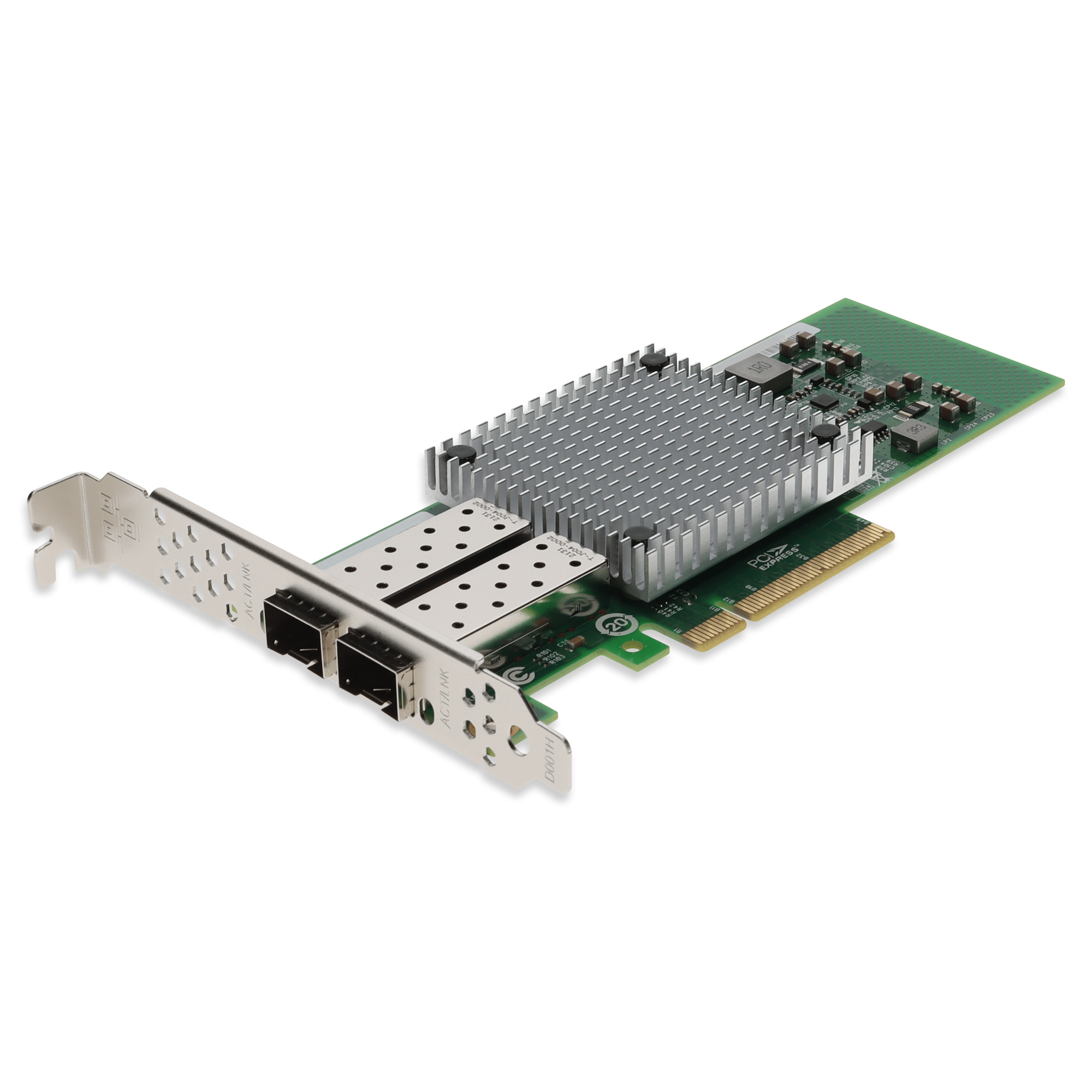

Cisco® UCSC-PCIE-CSC-02 Comparable 10Gbs Dual Open SFP+ Port PCIe 2.0 x8 Network Interface Card w/PXE boot
SKU: UCSC-PCIE-CSC-02-AO
United Kingdom: 0 in stock
North America: 46 in stock
Available from the following dealers:
This is a Cisco® UCSC-PCIE-CSC-02 comparable 10-Gigabit Ethernet PCIe 2.0 x8 network interface card with dual open SFP+ ports that comply with IEEE 802.3 standards. It is based on an Intel 82599 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual open SFP+ ports allow users to choose from a range of SFP+ transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets and supports Preboot Execution Environment booting (PXE Boot). With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Additional Information | with PXE boot |
| Bus Type | PCIe 2.0 |
| Bus Width | PCIEx8 |
| Chipset | Intel 82599 |
| Compatible OEM | Cisco® |
| Compatible OS | Windows Server 2012, Linux Kernel 2.6.30 or greater, Windows 7 (32 and 64 bit), Windows Server 2008 R2, Windows Small Business Server 2010, Windows 8.1 (32 and 64 bit), Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Windows 8 (32 and 64 bit), Windows Server 2012 R2 (64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 7.2 or later, Windows Vista Final (32 and 64 bit) |
| Compatible With OEM Part Number(s) | UCSC-PCIE-CSC-02 |
| Data Protocol | Ethernet |
| Data Rate | 10Gbs |
| External Connector | SFP+ |
| Media Type | MMF or SMF |
| Number of Ports | 2 Ports |
| Type | Network Interface Card |
Physical Specification
| Product Shipping Dimension(HxWxD) | 10.0 in. x 6.0 in. x 2.0 in. |
| Product Shipping Weight(LB) | 0.4 |
Miscellaneous
| Country Of Origin | China |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| UNSPSC Code | 43201411 |
| UPC Code | 821455229392 |
| What's In The Box | 1x network interface card |
| AddOn Part# | UCSC-PCIE-CSC-02-AO |
| Ingram Micro® | 5GC523 |
| Ingram Micro® Canada | 261VVM |
| Insight Electronics® | UCSC-PCIE-CSC-02-AO |
| TD Synnex CA | 5766678 |
| TD Synnex US | 4100330 |
Limited Lifetime
