10/100/1000Mbs Single RJ-45 Port 100m PCIe 2.0 x1 Network Interface Card
SKU: ADD-PCIE-1RJ45-2P1
United Kingdom: 0 in stock
North America: 414 in stock
Available from the following dealers:

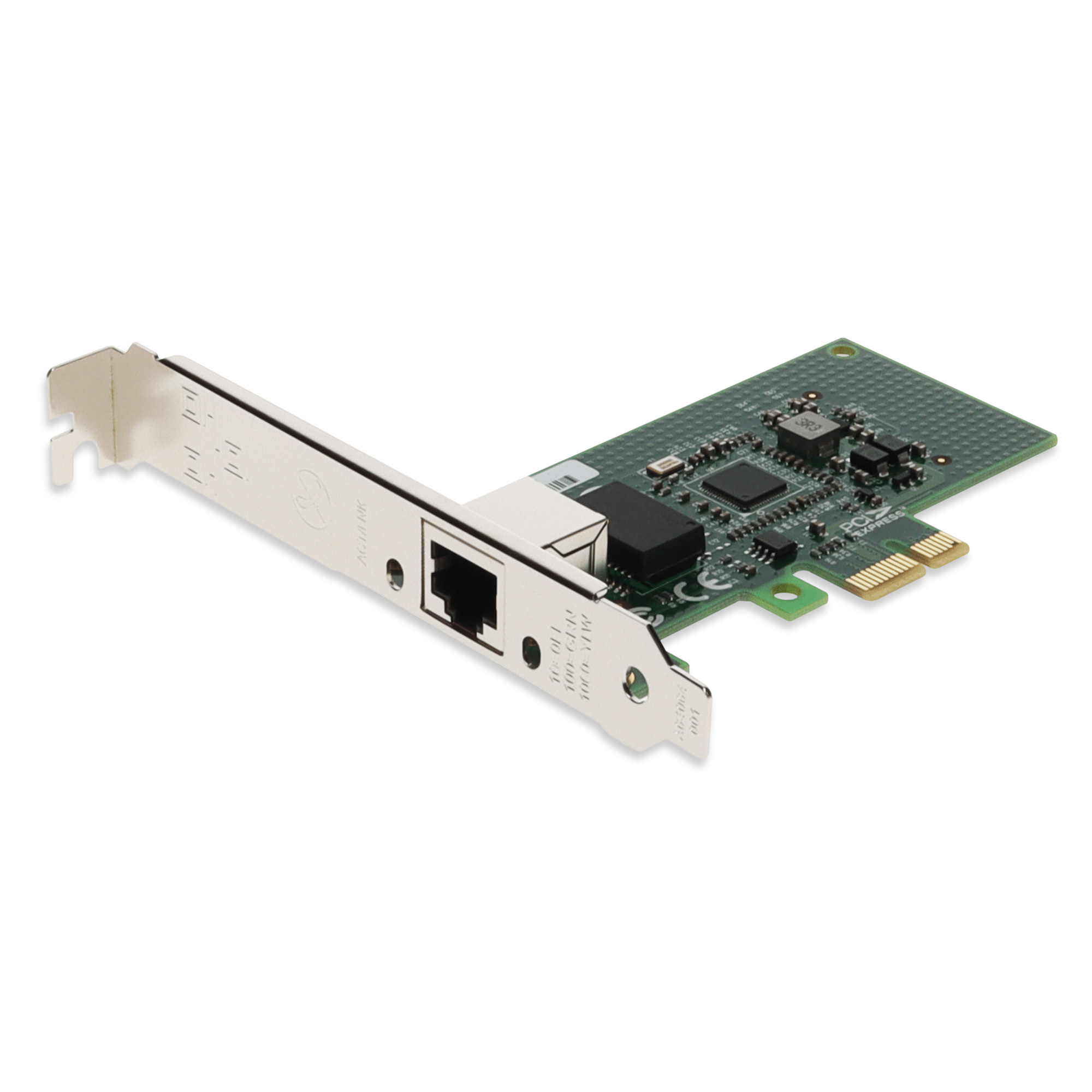

This is a Gigabit Ethernet PCIe 2.0 x1 network interface card with a single RJ-45 port that complies with IEEE 802.3 standards. It is based on an Intel I210 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10/100/1000Mbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single RJ-45 port operates over copper patch cable, allowing for an operating distance of 100m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Bus Type | PCIe 2.0 |
| Chipset | Intel I210 |
| Bus Width | PCIEx1 |
| Compatible OS | Windows Server 2012, Windows 7 (32 and 64 bit), Windows Server 2008 R2, Windows Small Business Server 2006, Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Windows 8 (32 and 64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 9.x, Windows Vista Final (32 and 64 bit), Windows XP (and Pro) (32 and 64 bit), Windows 2000 (and Server and Advanced), Netware 6.5 |
| Compatible OEM | Industry Standard |
| External Connector | RJ-45 |
| Data Protocol | Ethernet |
| Data Rate | 10/100/1000Mbs |
| Media Type | Copper |
| Number of Ports | 1 Port |
| Reach | 100m |
| Type | Network Interface Card |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5.2 in. x 0.9 in. x 4.7 in. |
| Product Shipping Weight(LB) | 0.75 |
Miscellaneous
| Country Of Origin | Varies |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| UNSPSC Code | 43201411 |
| UPC Code | 195285360533 |
| What's In The Box | 1x network interface card |
| AddOn Part# | ADD-PCIE-1RJ45-2P1 |
| Ingram Micro® | 9RG020 |
| Insight Electronics® | ADD-PCIE-1RJ45-2P1 |
Limited Lifetime
