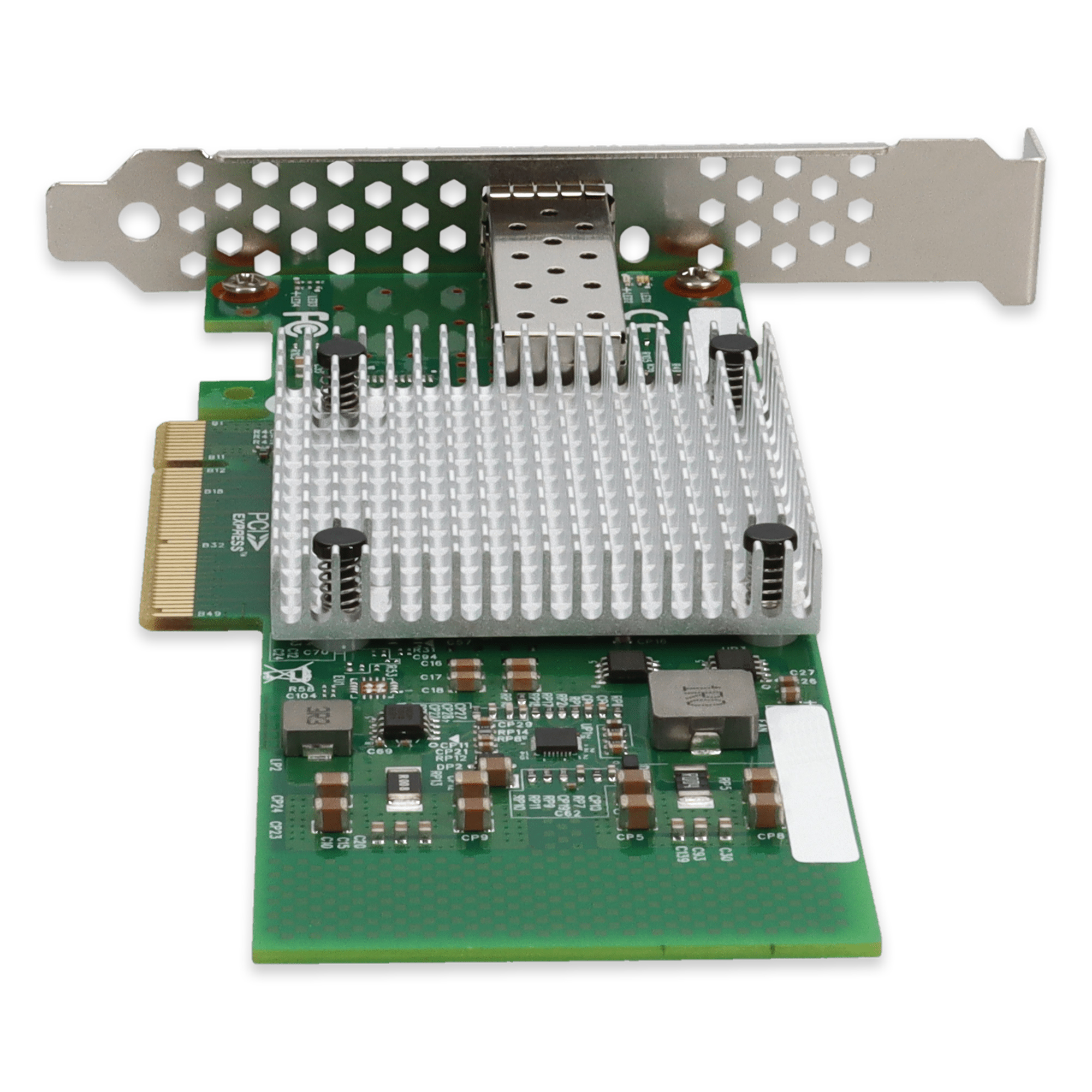

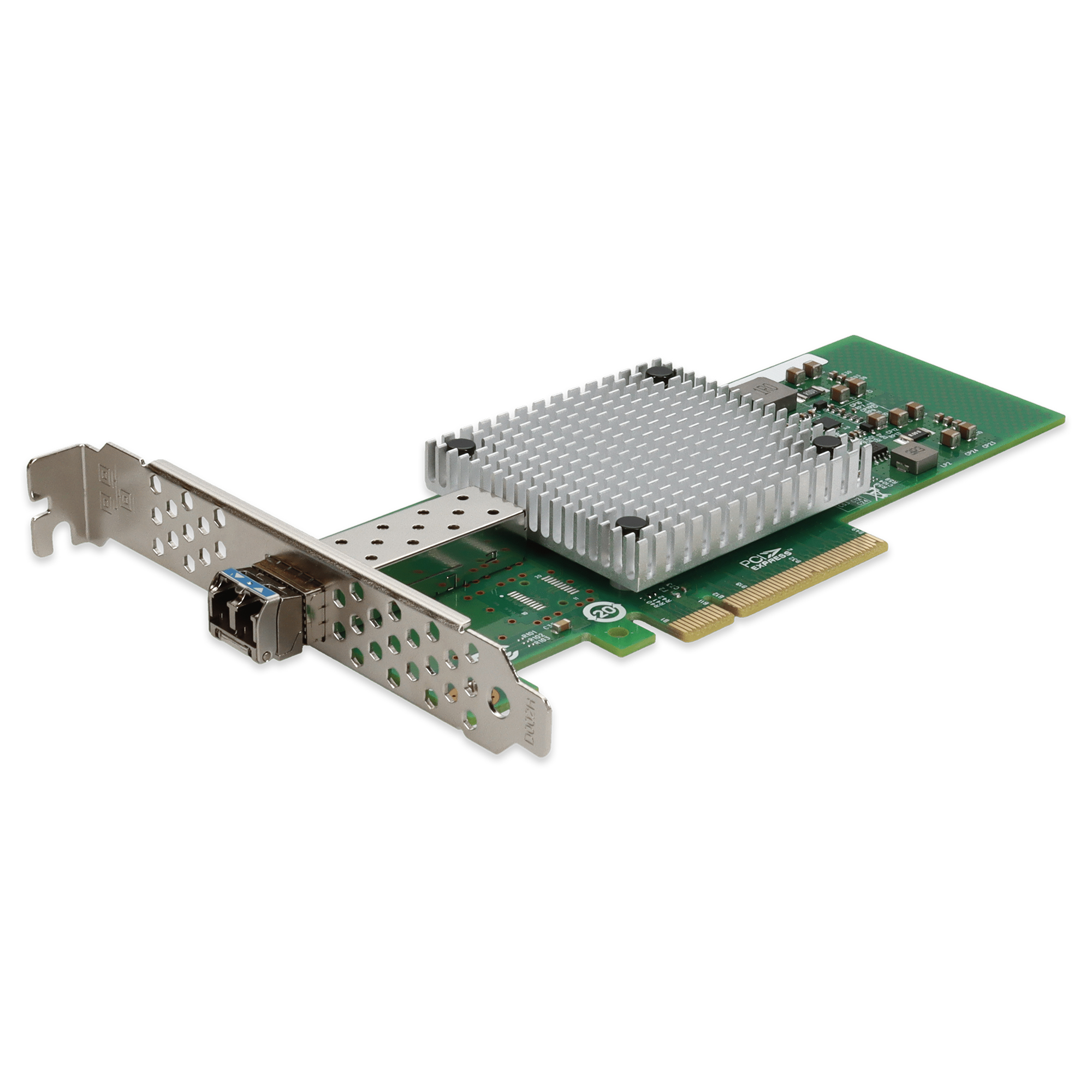

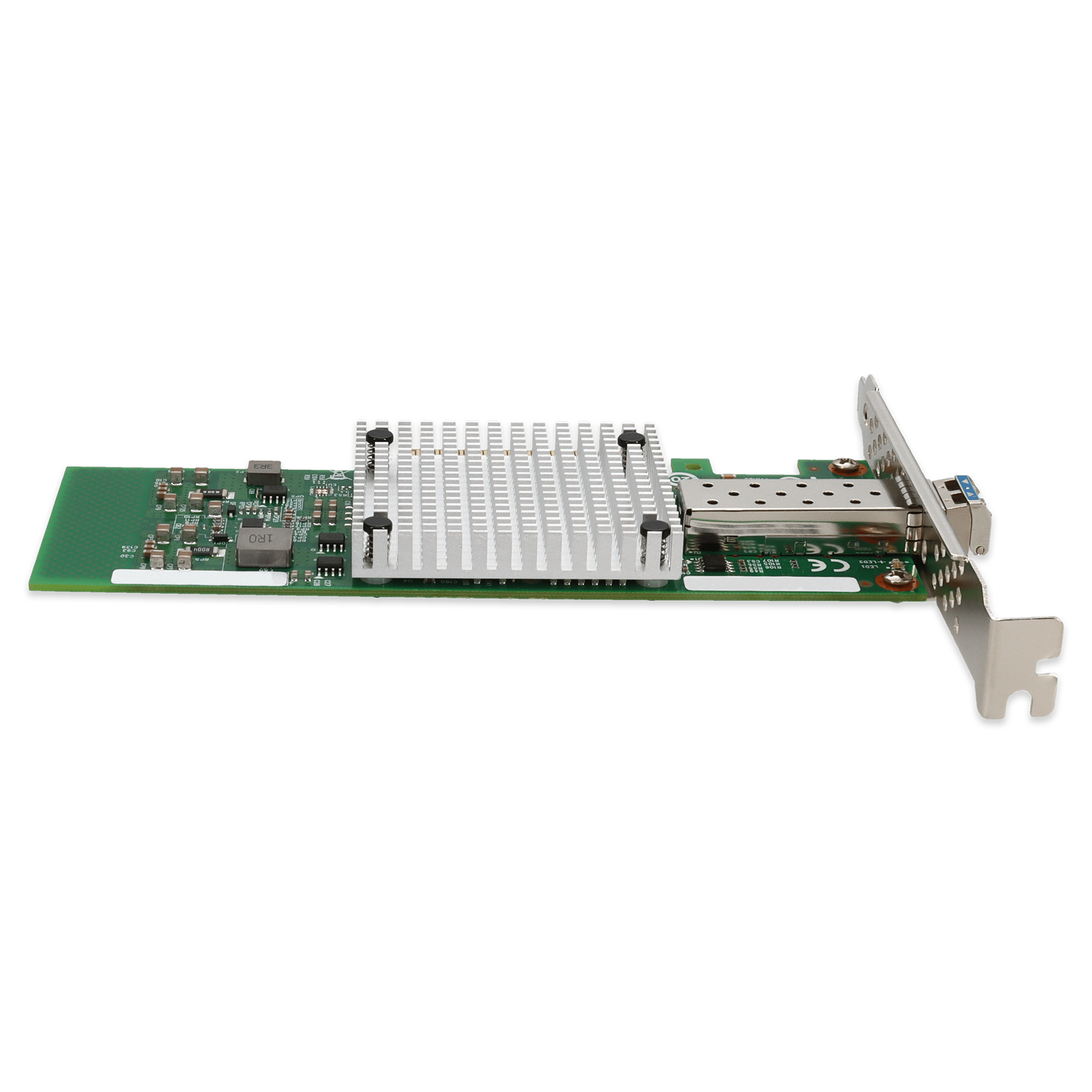

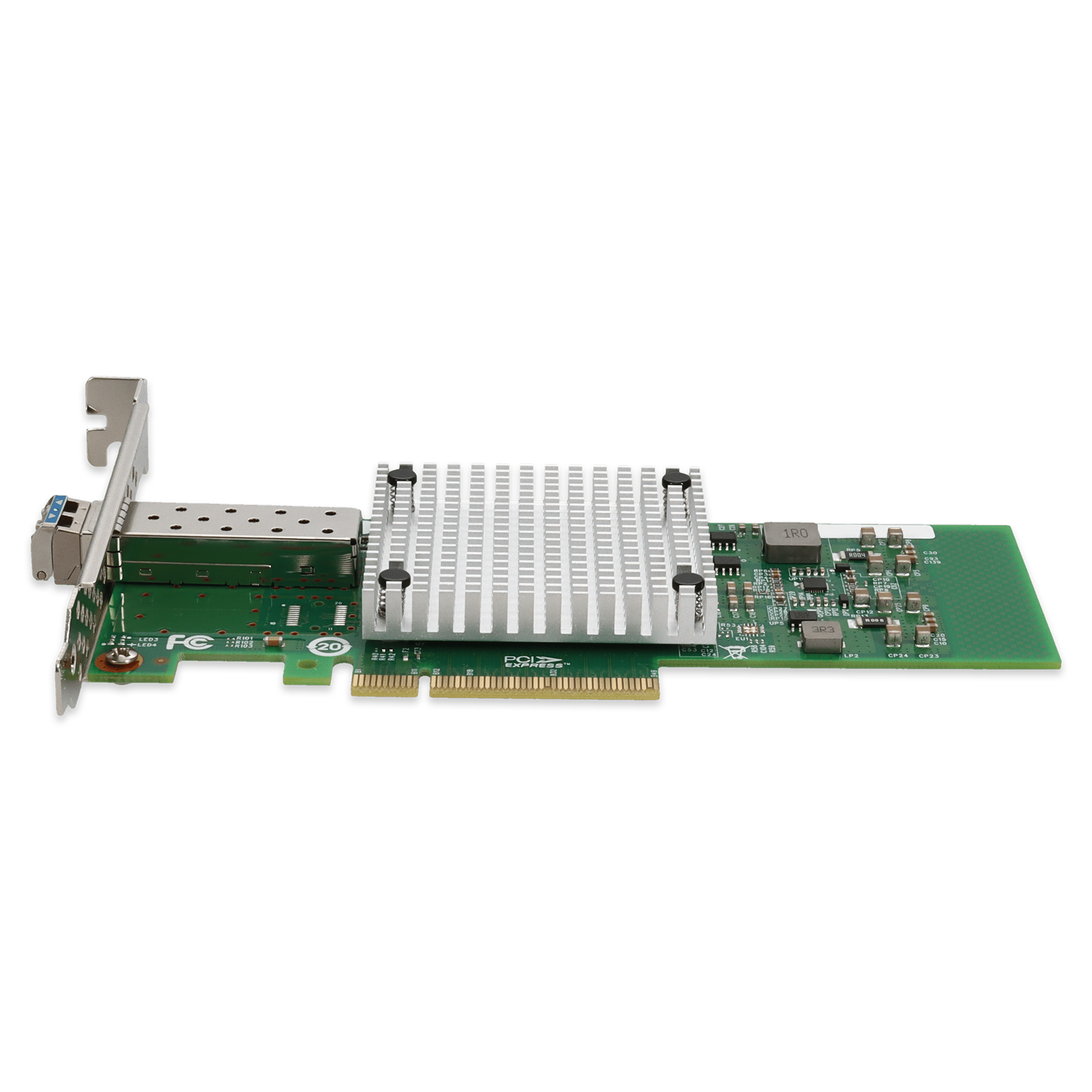

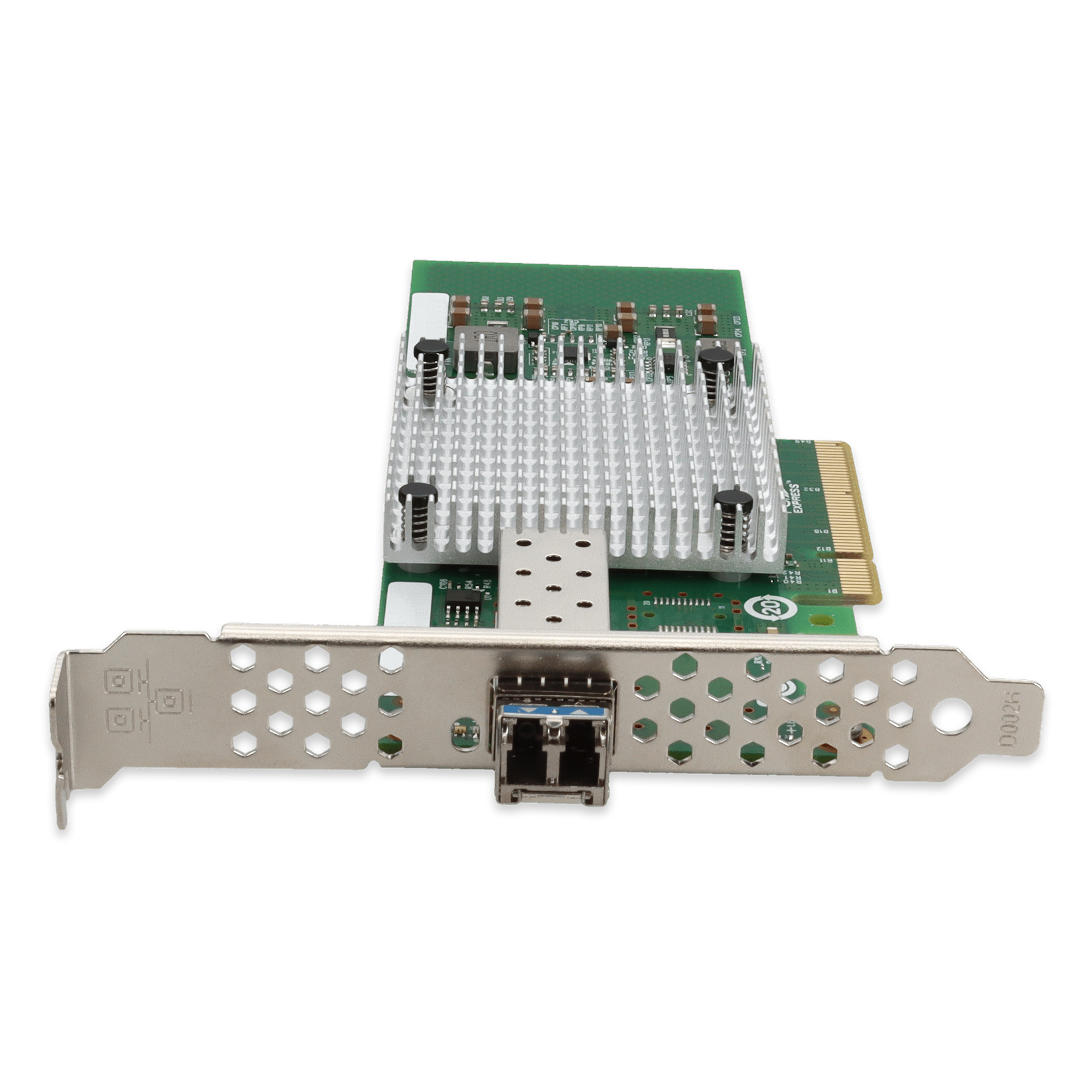

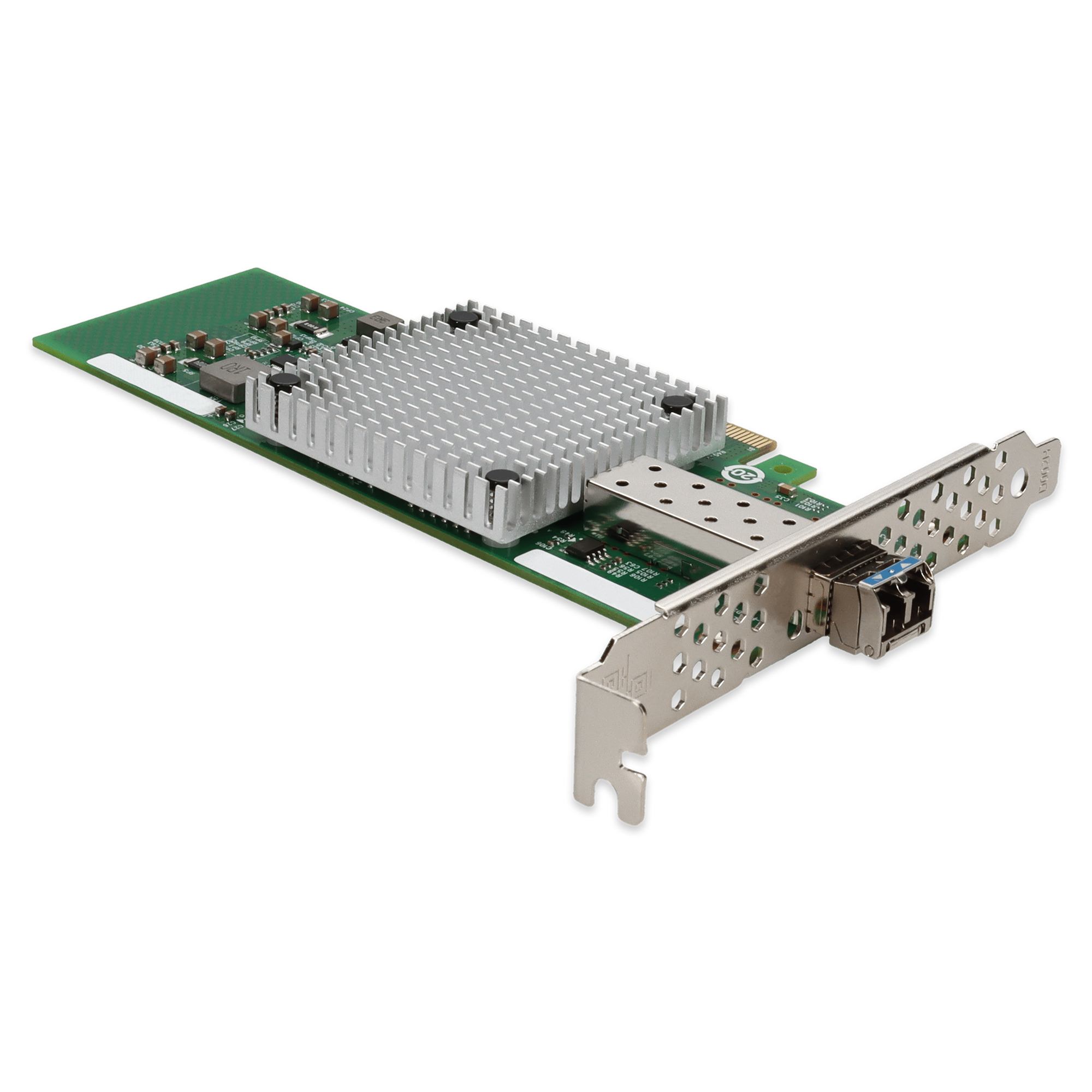

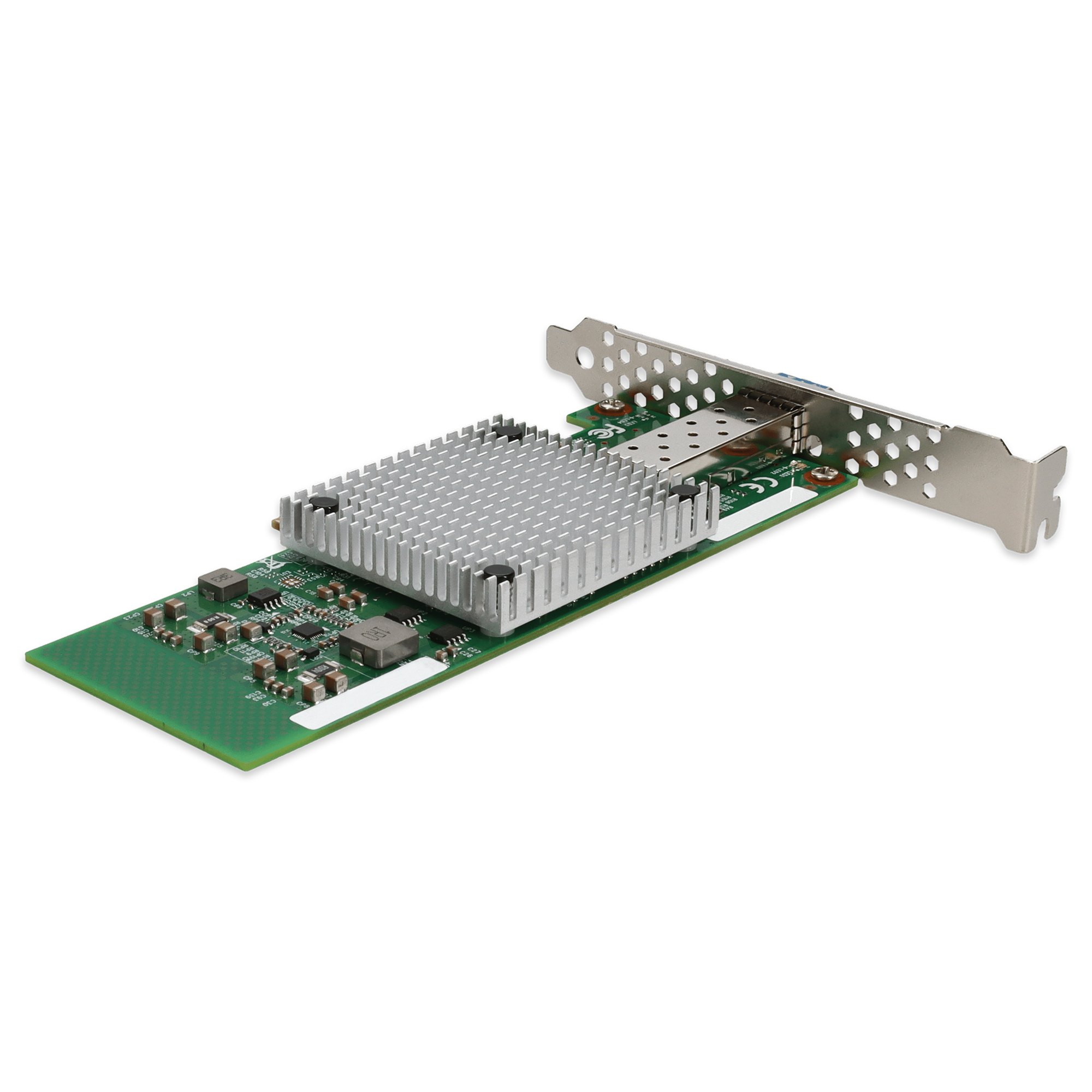

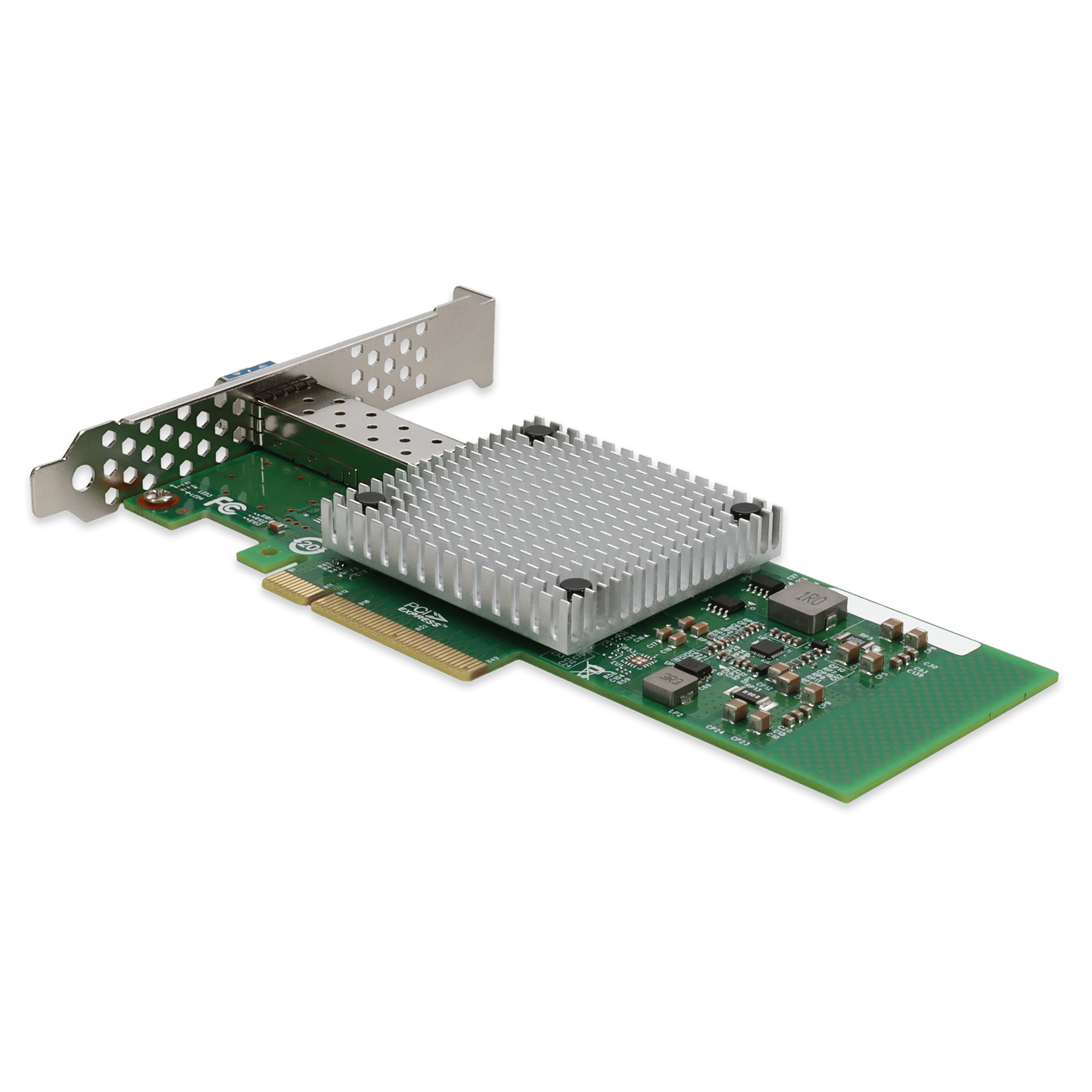

10Gbs Single Open SFP+ Port PCIe 2.0 x8 Network Interface Card w/10GBase-LR SFP+ Transceiver
SKU: ADD-PCIE-LC-LR-X1
United Kingdom: 0 in stock
North America: 11 in stock
Available from the following dealers:
This is a 10-Gigabit Ethernet PCIe 2.0 x8 network interface card with a single 10GBase-LR SFP+ transceiver that complies with IEEE 802.3 standards. It is based on an Intel 82599 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
| Bus Type | PCIe 2.0 |
| Bus Width | PCIEx8 |
| Cable Mode | Duplex |
| Chipset | Intel 82599 |
| Compatible OEM | Industry Standard |
| Compatible OS | Windows Server 2012, Linux Kernel 2.6.30 or greater, Windows 7 (32 and 64 bit), Windows Server 2008 R2, Windows Small Business Server 2010, Windows 8.1 (32 and 64 bit), Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Windows 8 (32 and 64 bit), Windows Server 2012 R2 (64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 7.2 or later, Windows Vista Final (32 and 64 bit) |
| Data Rate | 10Gbs |
| External Connector | LC |
| Media | SMF |
| Media Type | SMF |
| Number of Ports | 1 Port |
| Reach | 10km |
| Standard | OS2 |
| Wavelength | 1310nm |
| Data Protocol | Ethernet |
Physical Specification
| Product Shipping Dimension(HxWxD) | 10.0 in. x 6.0 in. x 2.0 in. |
| Product Shipping Weight(LB) | 0.4 |
Miscellaneous
| Country Of Origin | Varies |
| ECCN | EAR99 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| UNSPSC Code | 43201411 |
| UPC Code | 195285079145 |
| What's In The Box | 1x network interface card, 1x transceiver |
| AddOn Part# | ADD-PCIE-LC-LR-X1 |
| Insight Electronics® | ADD-PCIE-LC-LR-X1 |
Limited Lifetime
