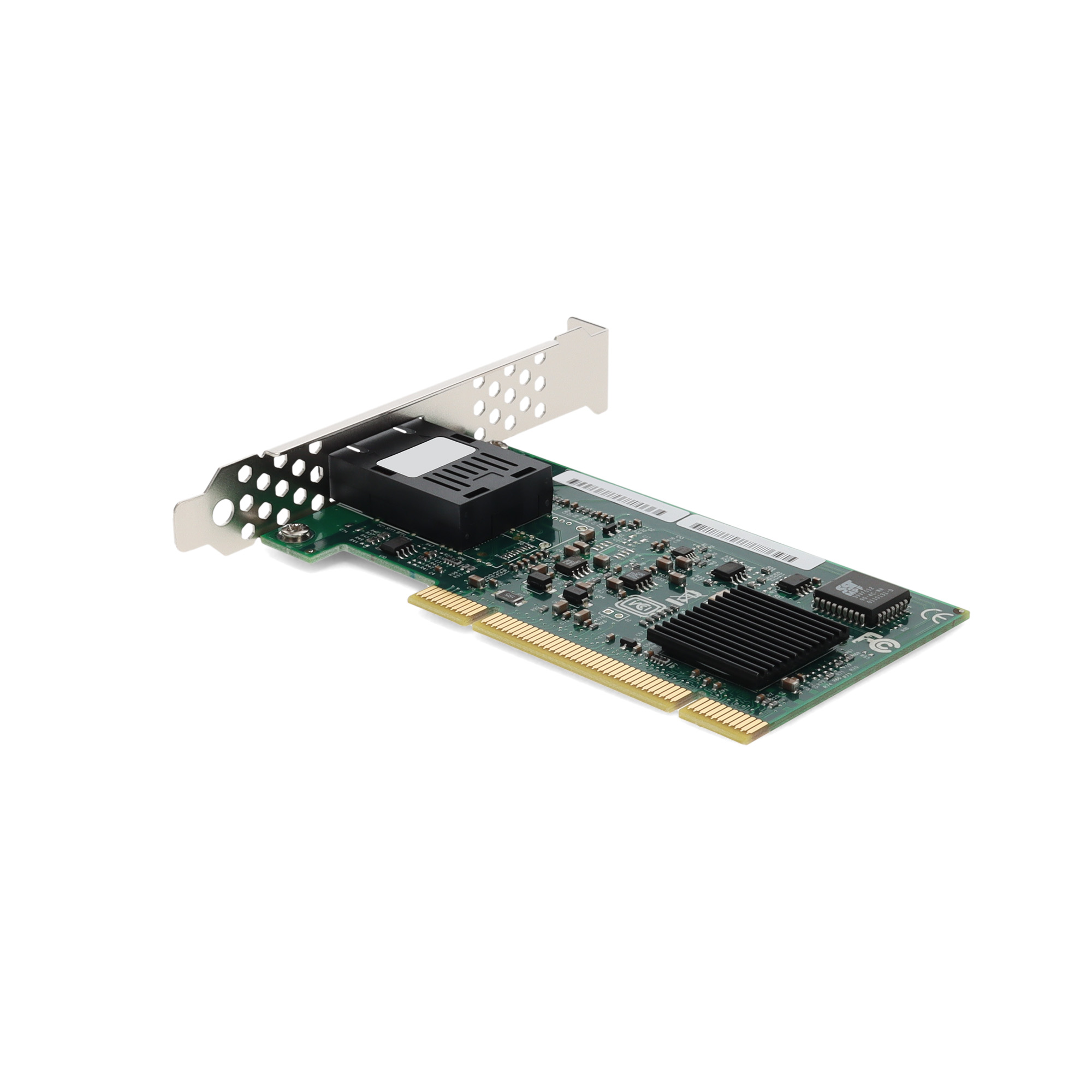

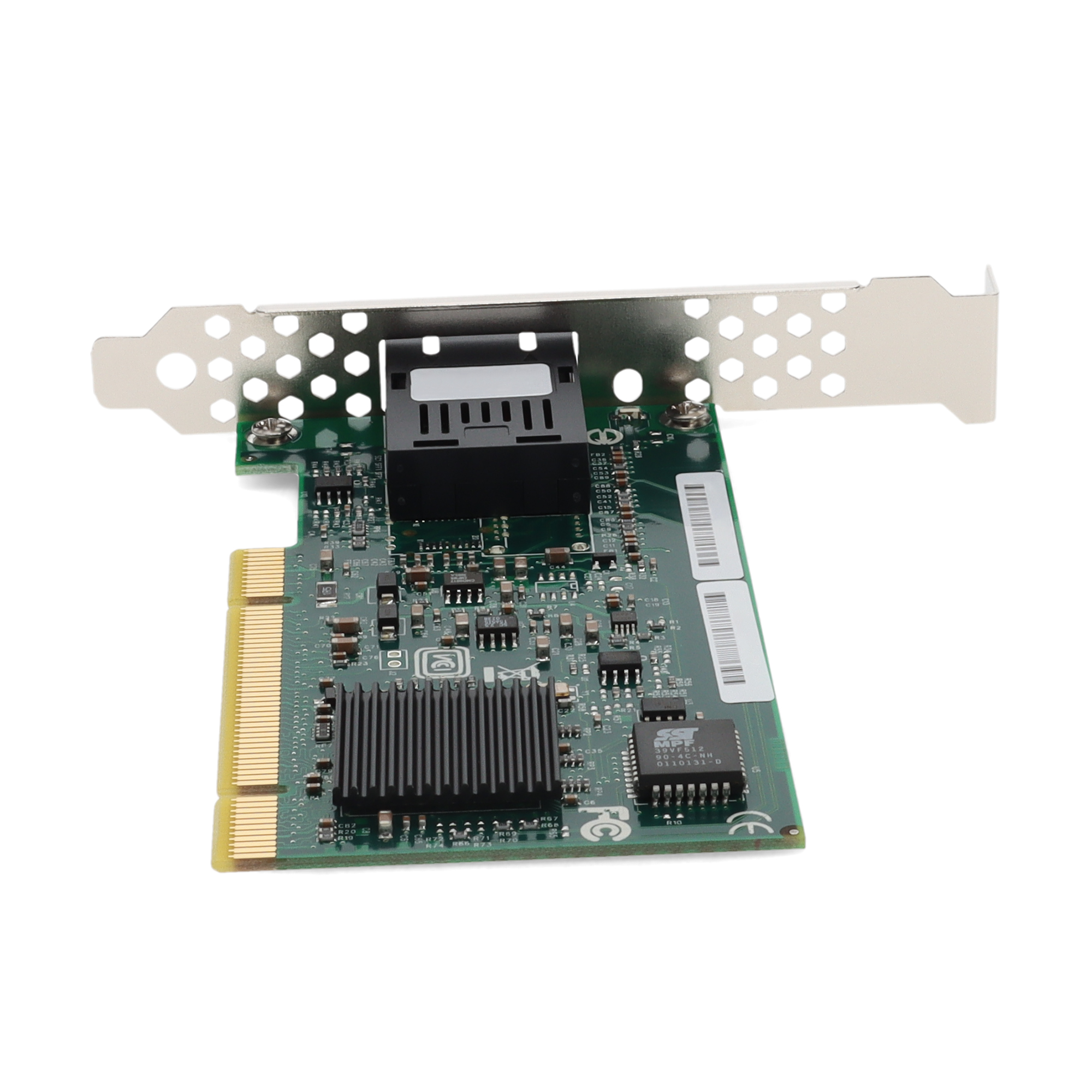

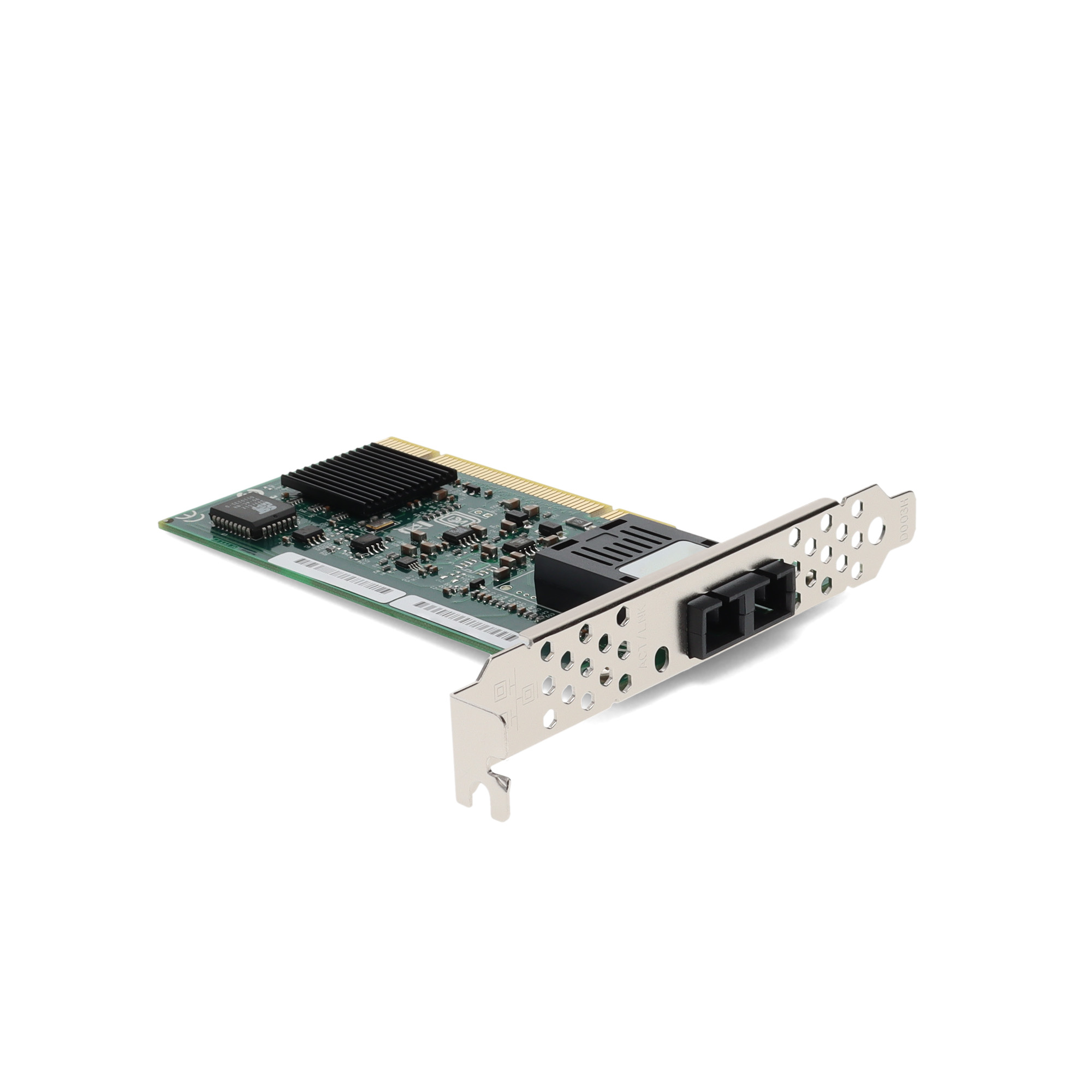

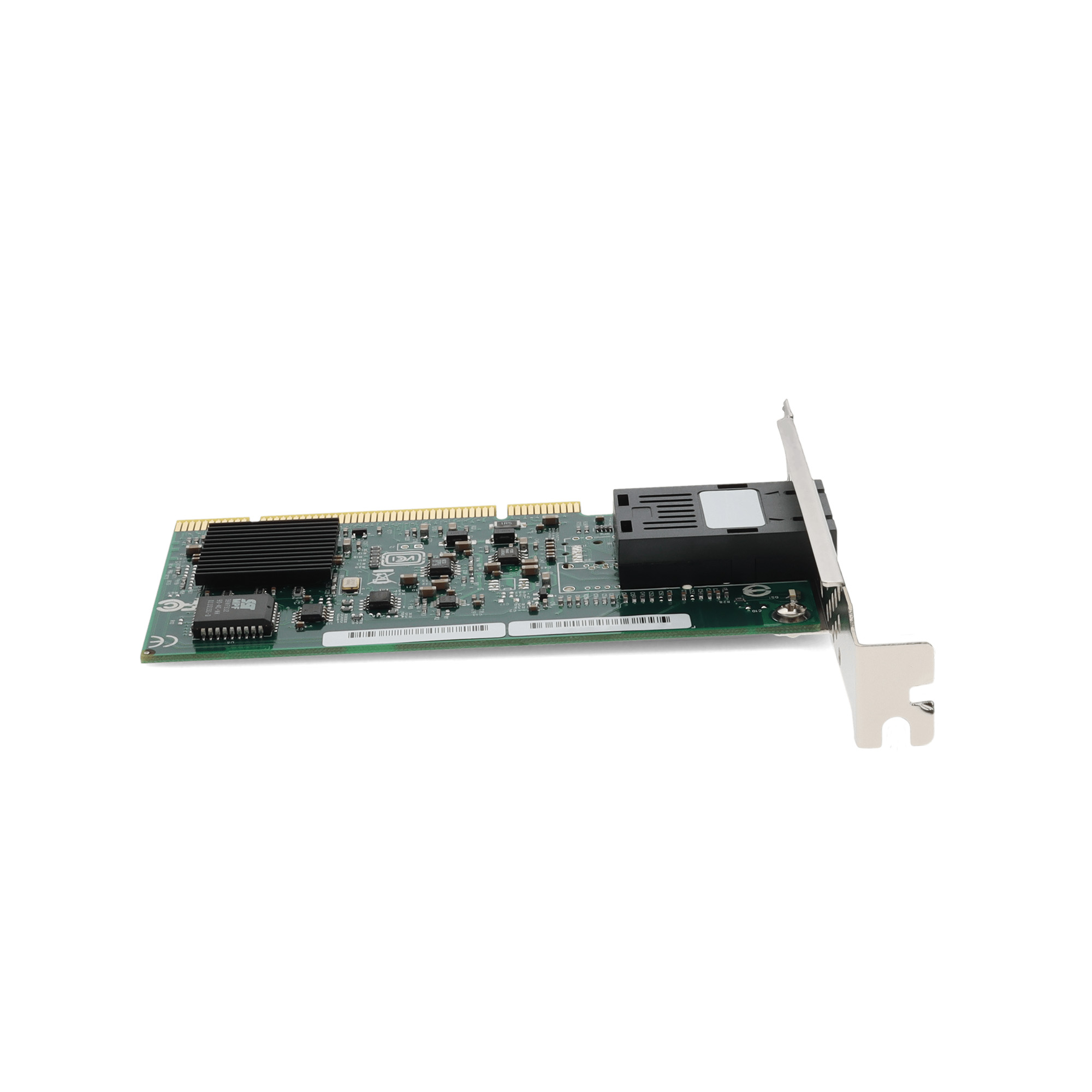

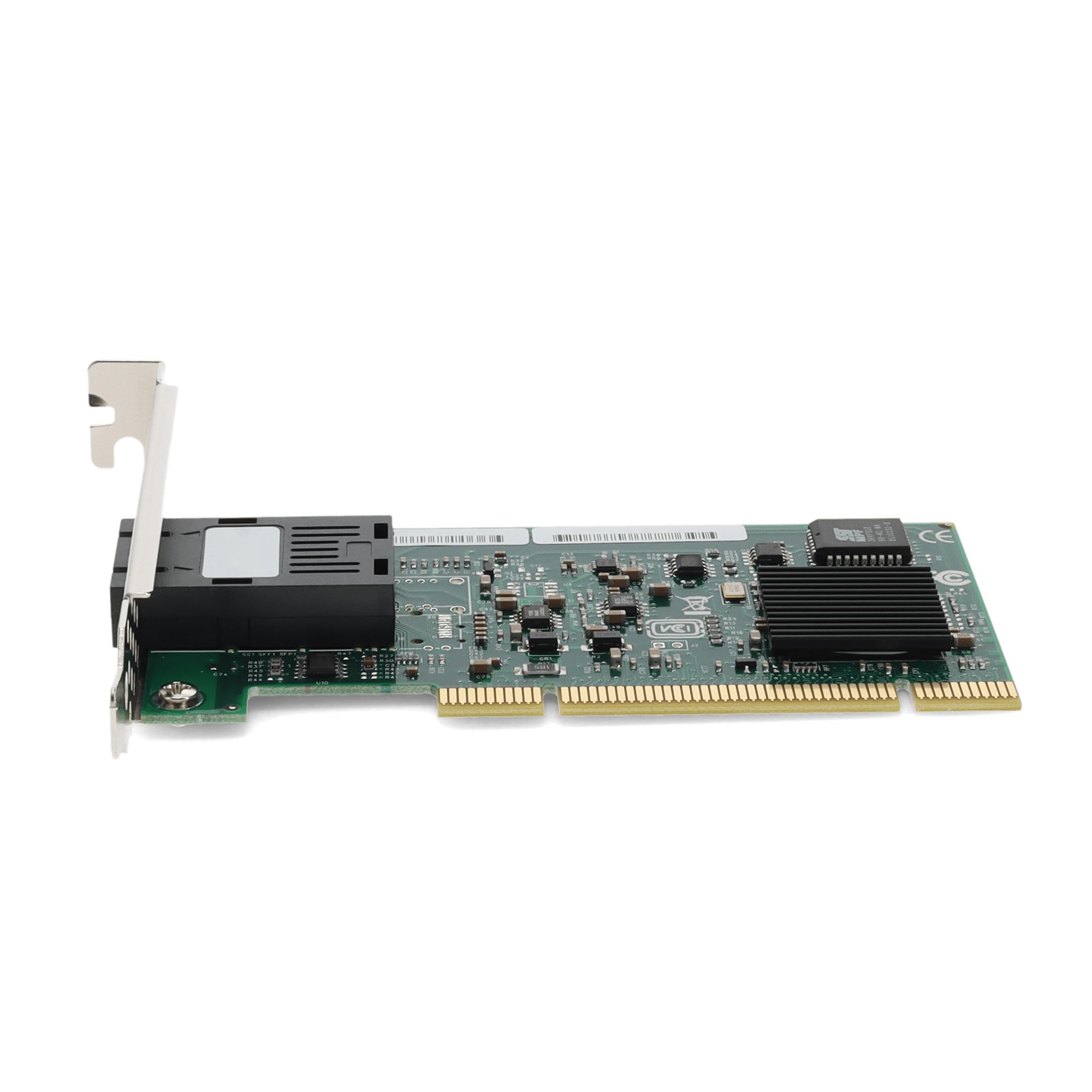

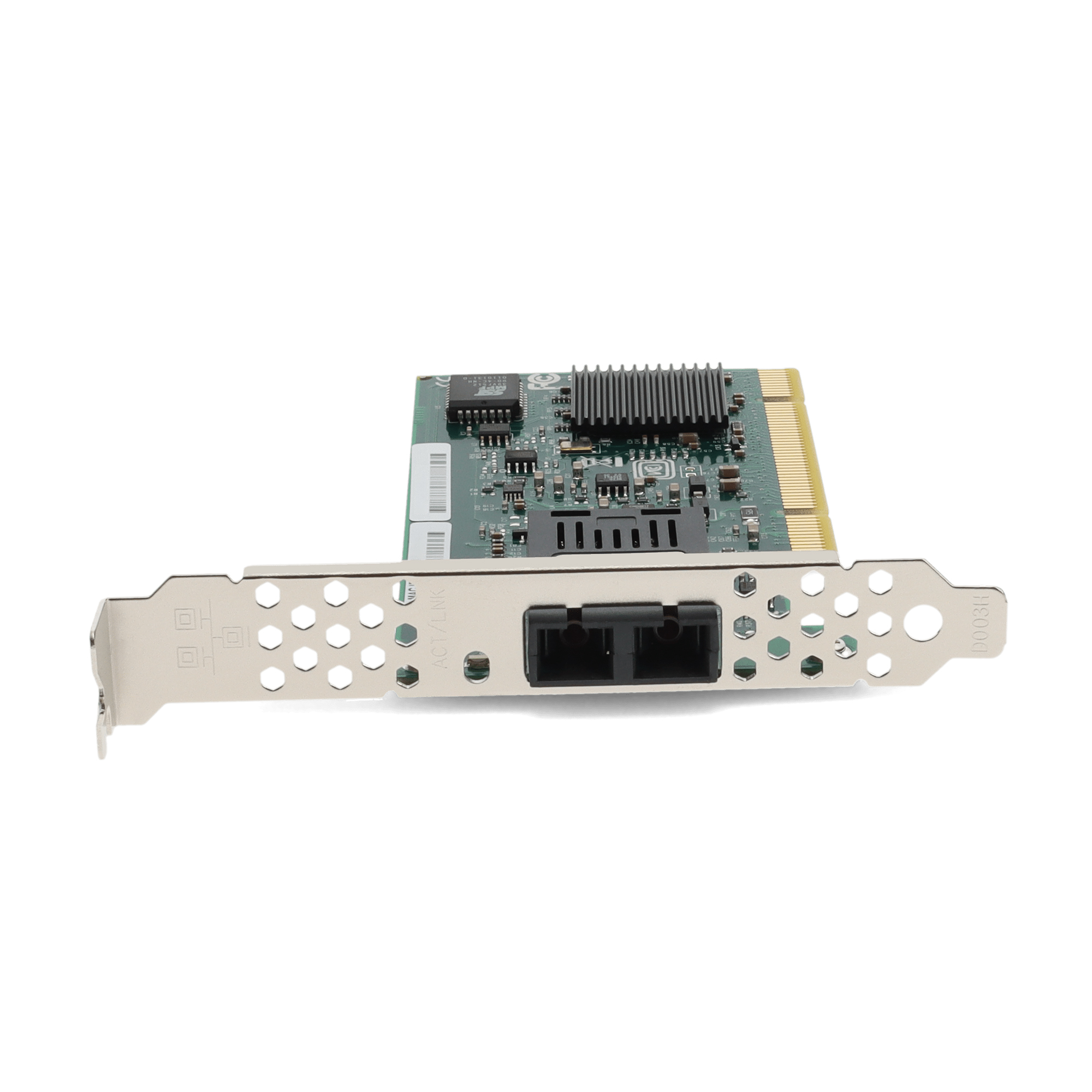

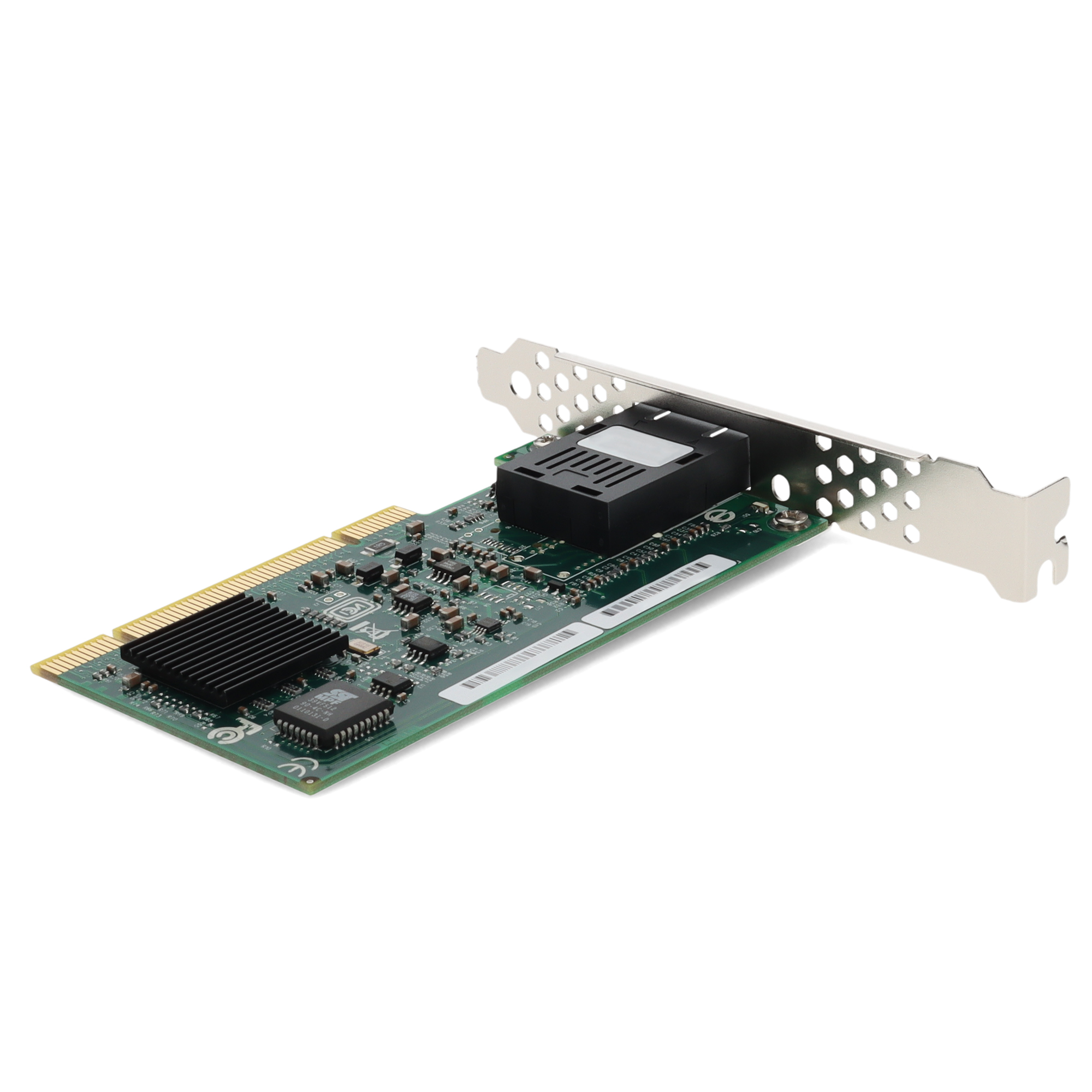

This is a Gigabit Ethernet PCI network interface card with a single SC port that complies with IEEE 802.3 standards. It is based on an Intel 82544 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single SC port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Technical Specification
Bus Type | PCI |
Bus Width | 32bit |
Chipset | Intel 82544 |
Compatible OEM | Industry Standard |
Compatible OS | Linux Kernel 2.2.x through 2.2.20 and 2.4.x through 2.4.18, Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 9.x, Windows Vista Final (32 and 64 bit), Windows XP (and Pro) (32 and 64 bit), Windows 2000 (and Server and Advanced), Windows CE 5.0, Netware 5.0/5.1 |
Data Protocol | Ethernet |
Data Rate | 1Gbs |
External Connector | SC |
Media Type | MMF |
Number of Ports | 1 Port |
Reach | 550m |
Wavelength | 850nm |
Type | Network Interface Card |
Strand Count | 0 |
Physical Specification
Product Shipping Dimension(HxWxD) | 1.5 in. x 4.0 in. x 8.0 in. |
Product Shipping Weight(LB) | 0.4 |
Miscellaneous
Country Of Origin | China |
ECCN | EAR99 |
HTS-Harmonized Code (US) | 8517.62.0090 |
UNSPSC Code | 43201411 |
UPC Code | 821455022542 |
What's In The Box | 1x network interface card |
