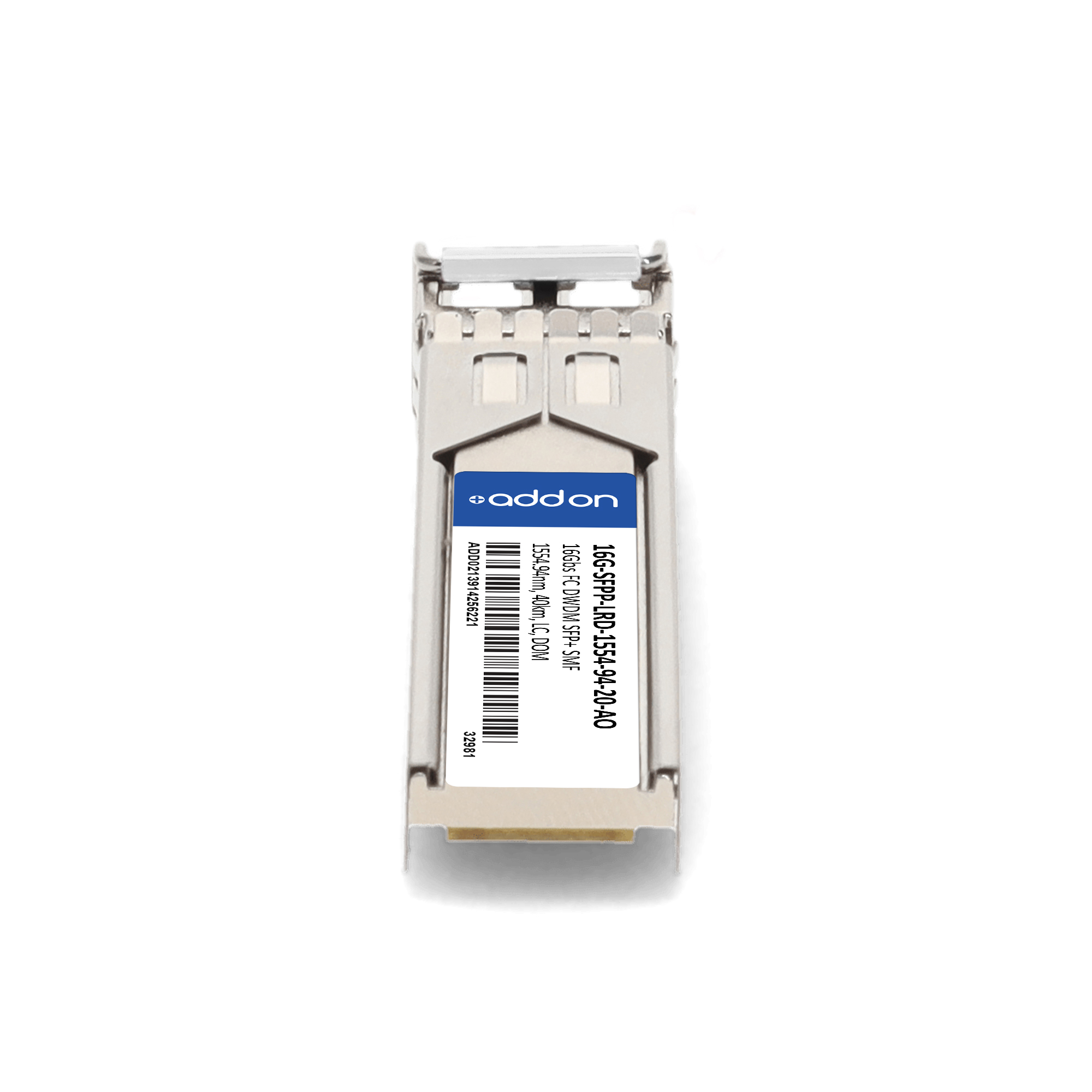

Brocade® Compatible TAA 16GBase-DWDM FC SFP+ Transceiver C-Band 100GHz (SMF, 1554.94nm, 40km, LC, DOM)
SKU: 16G-SFPP-LRD-1554-94-20-AO
United Kingdom: 0 in stock
North America: 0 in stock
Available from the following dealers:
This Brocade® compatible SFP+ transceiver provides 16GBase-DWDM Fibre Channel throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1554.94nm via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Brocade®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Technical Specification
| Compatible OEM | Brocade® |
| Transceiver Type | DWDM Fibre Channel |
| Reach | 40km |
| Connector | LC |
| Form Type | SFP+ |
| Wavelength | 1554.94nm |
| Media | SMF |
| Speed Description | 16-Gigabit |
| ITU Channel | 28 |
| ITU Frequency | 192800GHz |
| ITU Wavelength | 1554.94nm |
| Environment | 0 to 70C |
| Speed | 16GBase |
| DOM | DOM |
| ITU Channel Spacing | 100GHz |
| ITU Band - Spacing | C-Band - 100Ghz |
Physical Specification
| Product Shipping Dimension(HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.4 |
Miscellaneous
| Country Of Origin | USA/UK |
| ECCN | 5A991 |
| HTS-Harmonized Code (UK) | 85176200 |
| HTS-Harmonized Code (US) | 8517.62.0090 |
| TAA Compliant | Yes |
| UNSPSC Code | 43201553 |
| UPC Code | 195285233523 |
| What's In The Box | 1x transceiver |
| AddOn Part# | 16G-SFPP-LRD-1554-94-20-AO |
| Insight Electronics® | 16G-SFPP-LRD-1554-94-20-AO |
Limited Lifetime
